FRONT LOWER SUSPENSION ARM COMPONENTS
Info Added 2017-10-06
ILLUSTRATION

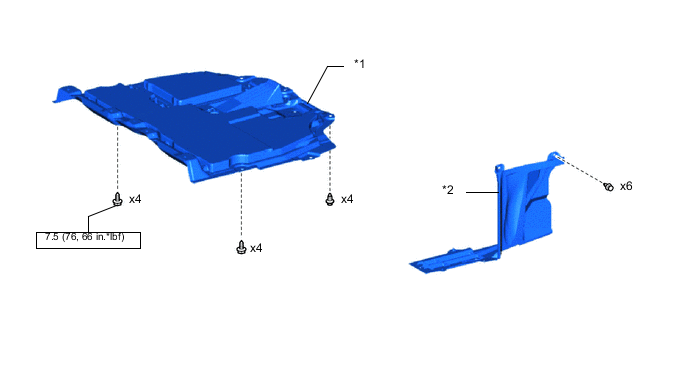

| *1 | NO. 1 ENGINE UNDER COVER | *2 | REAR ENGINE UNDER COVER LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

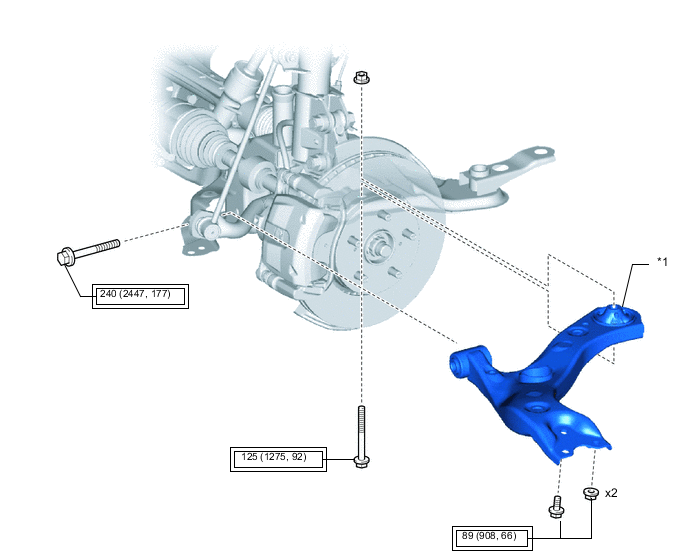

| *1 | FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
