REAR UPPER ARM COMPONENTS
Info Added 2017-10-06

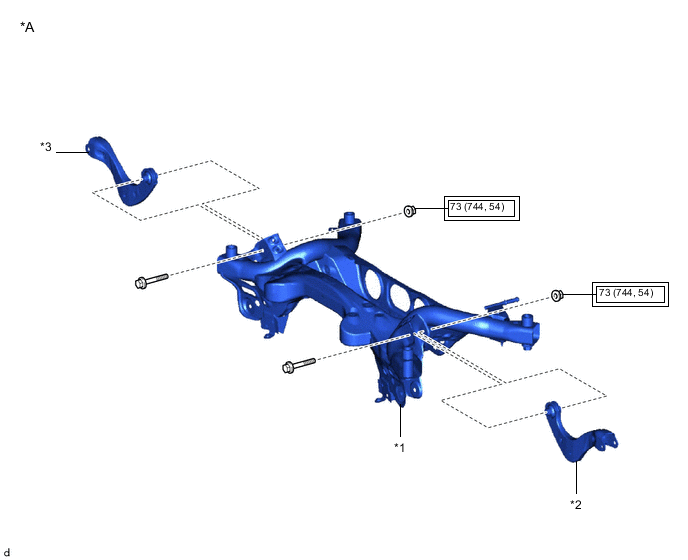

ILLUSTRATION
| *A | for 2WD | - | - |
| *1 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY RH | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

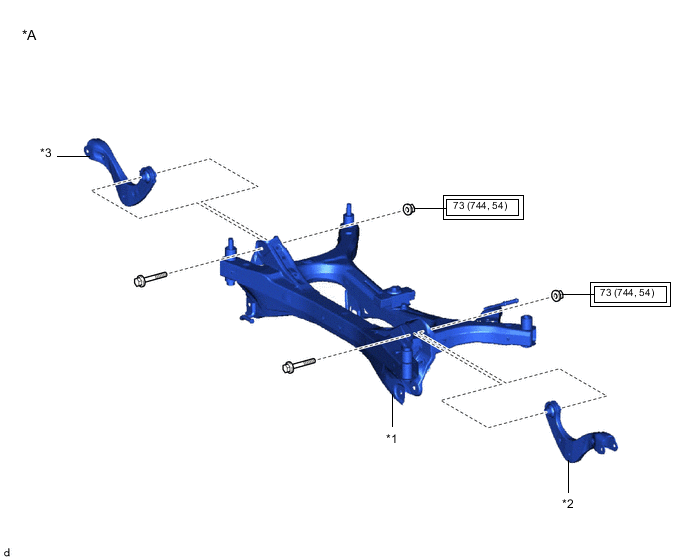

ILLUSTRATION
| *A | for AWD | - | - |
| *1 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY RH | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
