REAR COIL SPRING COMPONENTS
Info Added 2017-10-06
ILLUSTRATION
| *A | for 2WD | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for AWD | - | - |
| *1 | REAR FLOOR SIDE MEMBER COVER LH | *2 | REAR FLOOR SIDE MEMBER COVER RH |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

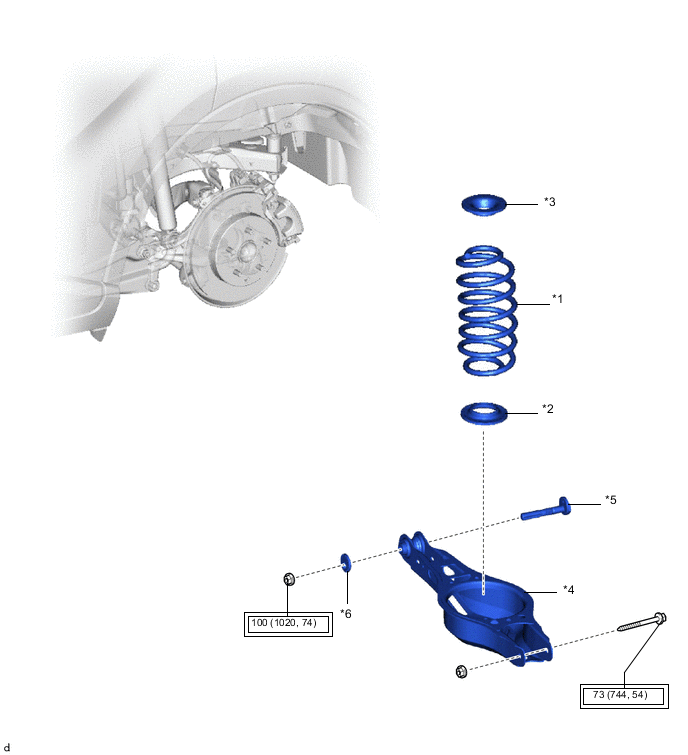

| *1 | REAR COIL SPRING | *2 | REAR LOWER COIL SPRING INSULATOR |
| *3 | REAR UPPER COIL SPRING INSULATOR | *4 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *5 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *6 | NO. 2 CAMBER ADJUST CAM |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
