INTAKE MANIFOLD REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intake manifold removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link

  • Replacement of throttle body assembly

  • Cleaning the deposits from the throttle body assembly

  • Air leak from intake system is repaired

 Inspection After Repair

  • Poor idle, etc.

  • Engine start function, etc.

Click here

PROCEDURE


  1. REMOVE THROTTLE BODY ASSEMBLY

    Click here

  2. REMOVE VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)

    Click here

  3. REMOVE VACUUM SENSOR BRACKET

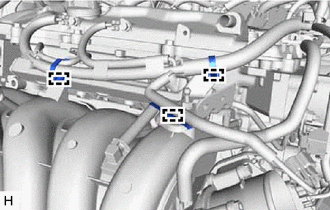

    1. A001TRT

      Disengage the wire harness clamp from the intake manifold.

    2. Disengage the 2 wire harness clamps from the vacuum sensor bracket.

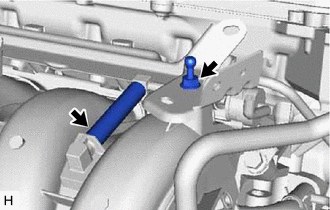

    3. A001XDX

      Disconnect the No. 1 air hose assembly from the intake manifold.

    4. Remove the bolt and vacuum sensor bracket from the intake manifold.

  4. DISCONNECT NO. 1 FUEL VAPOR FEED HOSE

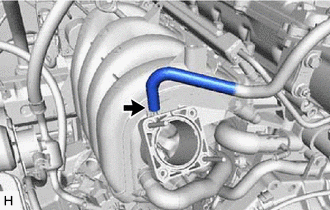

    1. A001SZF

      Disconnect the No. 1 fuel vapor feed hose from the intake manifold.

  5. DISCONNECT VENTILATION HOSE

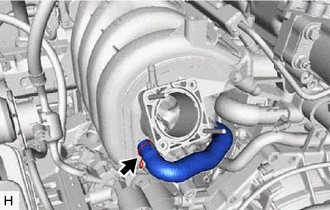

    1. A001TE5

      Slide the clip and disconnect the ventilation hose from the intake manifold.

  6. REMOVE INTAKE MANIFOLD

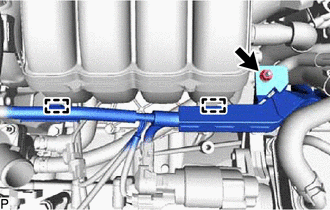

    1. A001SNC

      Disengage the 2 wire harness clamps from the intake manifold.

    2. Remove the nut to separate the engine wire from the wire harness clamp bracket.

    3. A001V0GC01
      *1 Bolt
      *2 Nut

      Remove the 4 bolts, 2 nuts, intake manifold and intake manifold stay.

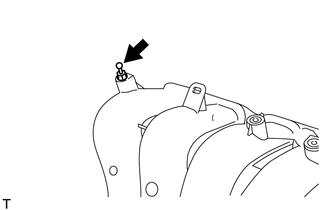

    4. A001TKY

      Remove the bolt from the intake manifold.

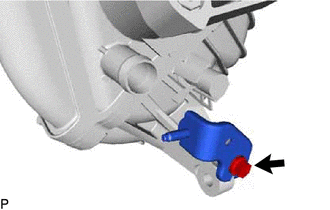

    5. A001TD3

      Remove the bolt and wire harness clamp bracket from the intake manifold.

  7. REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET

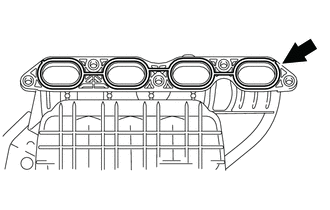

    1. A001WF4

      Remove the No. 1 intake manifold to head gasket from the intake manifold.

  8. REMOVE STUD BOLT (w/ Stud Bolt)

    Tech Tips

    If a stud bolt is deformed or the threads are damaged, replace it.


    1. A001VGL

      Using an E6 "TORX" socket wrench, remove the 2 stud bolts from the intake manifold.
