CYLINDER HEAD GASKET COMPONENTS
Info Added 2017-10-06

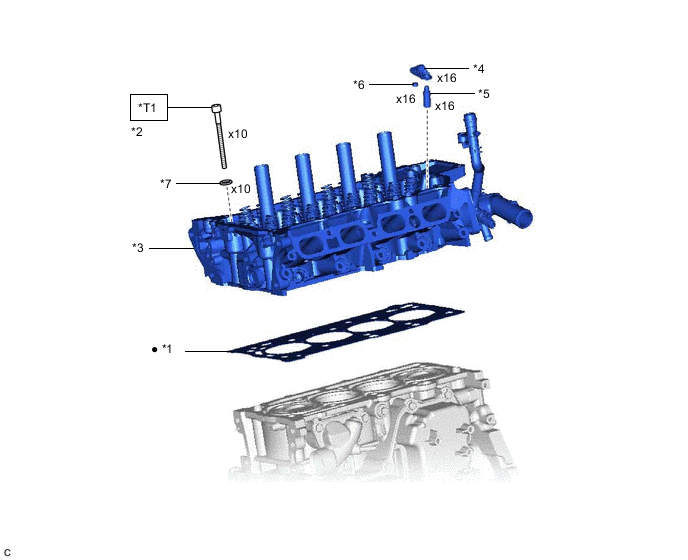

ILLUSTRATION
| *1 | CYLINDER HEAD GASKET | *2 | CYLINDER HEAD SET BOLT |
| *3 | CYLINDER HEAD SUB-ASSEMBLY | *4 | NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY |
| *5 | VALVE LASH ADJUSTER ASSEMBLY | *6 | VALVE STEM CAP |
| *7 | CYLINDER HEAD SET PLATE WASHER | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| *T1 | 1st: 32 (326, 24) 2nd: Turn 90° 3rd: Turn 90° |
- | - |
