PARKING ASSIST MAIN SWITCH INSTALLATION

PROCEDURE


  1. INSTALL S-IPA SWITCH (COMBINATION SWITCH ASSEMBLY)


    1. for LHD:

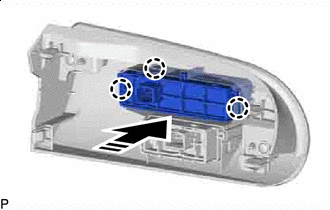

      1. A003LAMC02
        B006IFV Install in this Direction

        Engage the 3 claws to install the S-IPA switch (combination switch assembly) as shown in the illustration.

    2. for RHD:

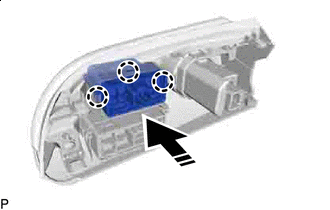

      1. A003MFIC02
        B006IFV Install in this Direction

        Engage the 3 claws to install the S-IPA switch (combination switch assembly) as shown in the illustration.

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Click here
