ULTRASONIC SENSOR(for Rear) COMPONENTS

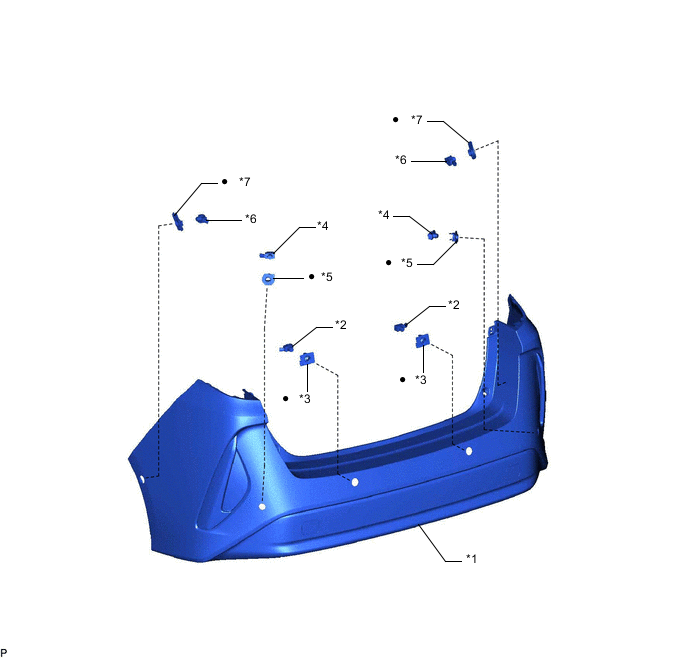

ILLUSTRATION
| *1 | REAR BUMPER ASSEMBLY | *2 | REAR CENTER ULTRASONIC SENSOR |
| *3 | REAR CENTER ULTRASONIC SENSOR RETAINER | *4 | REAR CORNER ULTRASONIC SENSOR |
| *5 | REAR CORNER ULTRASONIC SENSOR RETAINER | *6 | REAR SIDE ULTRASONIC SENSOR |
| *7 | REAR SIDE ULTRASONIC SENSOR RETAINER | - | - |
| ● | Non-reusable part | - | - |
