PARKING ASSIST MONITOR SYSTEM SYSTEM DESCRIPTION


  1. GENERAL


    1. This system has a rear television camera assembly mounted on the back door to display an image of the area behind the vehicle on the multi-display. The multi-display also shows a composite view consisting of the area behind the vehicle and parking guide lines to assist the driver in parking the vehicle by monitoring the area behind the vehicle.

    2. This system consists of the following components:


      1. Television camera assembly

      2. Navigation receiver assembly*1

      3. Radio and display receiver assembly*2

      4. Steering sensor

      5. Hybrid vehicle control ECU

      6. Main body ECU (multiplex network body ECU)

      7. Skid control ECU

      8. Power steering ECU assembly

      9. Clearance warning ECU assembly*3


        • *1: for Navigation Receiver Type

        • *2: for Radio and Display Type

        • *3: w/ Toyota Parking Assist-sensor System

    3. This system is equipped with a self-diagnosis system, which is operated on a designated window that appears on the multi-display.

  2. FUNCTION OF COMPONENTS


    1. The rear television camera assembly controls the system by using information from the following components.

      Item Function
      Rear Television Camera Assembly

      • Mounted on the back door to transmit a composite image of the area behind the vehicle and guide lines calculated based on signals received from each ECU, to the navigation receiver assembly*1 or radio and display receiver assembly*2.

      • Has a color video camera that uses a Complementary Metal Oxide Semiconductor (CMOS) and wide-angle lens.

      • Stops displaying the guide lines when an open signal is received for the back door.

      • Performs overall control of the system by receiving signals from the sensor and ECUs.

      • Navigation Receiver Assembly*1

      • Radio and Display Receiver Assembly*2

      • Receives video signals which contain a composite image of the area behind the vehicle taken with the rear television camera assembly and guide lines calculated based on signals received from each ECU.

      • Performs control of the system by receiving the reverse signal from the hybrid vehicle control ECU assembly.

      • Receives diagnostic mode video signals from the rear television camera assembly.

      • Transmits the setting information signal to the rear television camera assembly via CAN communication.

      • Displays "Back door is open. Do not use the rear view monitor when the back door is not completely closed." on the back camera position setting screen when the back door is open.
      Steering Sensor Detects the angle of the steering wheel and transmits the resulting signals to the rear television camera assembly via CAN communication.
      Hybrid Vehicle Control ECU

      • Transmits the vehicle information signal to the rear television camera assembly via CAN communication.

      • Transmits the reverse signal to the navigation receiver assembly*1 or radio and display receiver assembly*2.
      Skid control ECU Transmits the vehicle speed signal to the rear television camera assembly via CAN communication.
      Main Body ECU (Multiplex Network Body ECU) Transmits the back door courtesy switch signal to the rear television camera assembly via CAN communication.
      Power Steering ECU Assembly Transmits an EPS variation signal to the rear television camera assembly via CAN communication.
      Clearance Warning ECU Assembly*3 Transmits the sonar information signal to the rear television camera assembly via CAN communication.

      • *1: for Navigation Receiver Type

      • *2: for Radio and Display Type

      • *3: w/ Toyota Parking Assist-sensor System

  3. OPERATION EXPLANATION


    1. The navigation receiver assembly*1 or radio and display receiver assembly*2 receives the reverse signal when the power switch is on (IG) and reverse (R) is selected. After receiving the reverse signal, the multi-display switches to the parking assist monitor system.


      • *1: for Navigation Receiver Type

      • *2: for Radio and Display Type

  4. DISPLAY MODE

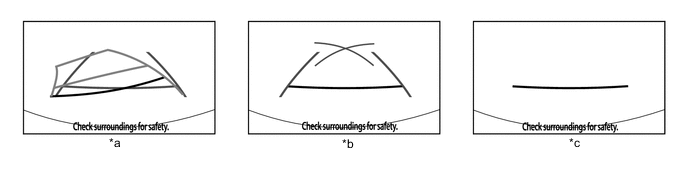

    A003K2NC01
    *a Estimated Course Line Display Mode *b Parking Assist Guide Line Display Mode
    *c Distance Guide Line Display Mode - -
    Parking Assist Monitor Display Mode
    Parking Assist Monitor Display Mode

    Distance Guide Lines

    (Red)

    Estimated Course Lines

    (Yellow)

    Distance Guide Line

    (Yellow)

    Vehicle Width Extension Guide Line

    (Blue)

    Distance Guide Line

    (Blue)

    		 Parking Assist Guide Lines (Blue)
    Estimated course line display mode Displayed Displayed Displayed Displayed Displayed Not displayed
    Parking assist guide line display mode Displayed Not displayed Not displayed Displayed Not displayed Displayed
    Distance guide line display mode Displayed Not displayed Not displayed Not displayed Not displayed Not displayed

  5. DIAGNOSTIC FUNCTION OUTLINE


    1. This parking assist monitor system has a diagnostic function displayed on the multi-display. This function enables calibration (adjustment and verification) of the parking assist monitor system.

      Click here

    2. The following items for the parking assist monitor system can be checked using the GTS.

      Item Proceed to
      DTC

      Click here

      Data List / Active Test

      Click here
