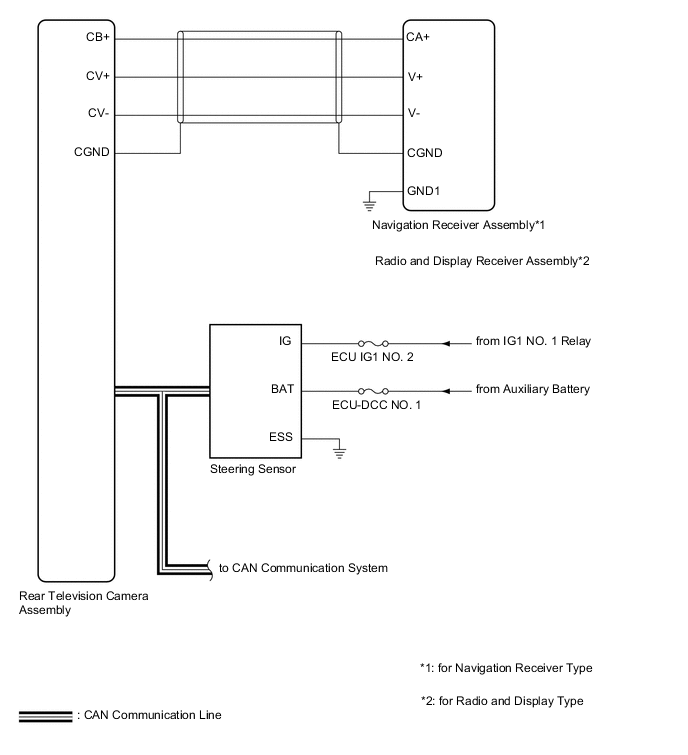

PARKING ASSIST MONITOR SYSTEM SYSTEM DIAGRAM

A003NLJE11
A003NHEE07
Communication Table
Sender Receiver Signal Line

  • Navigation Receiver Assembly*1

  • Radio and Display Receiver Assembly*2

 Rear Television Camera Assembly Setting information signal CAN
Steering Sensor Rear Television Camera Assembly Steering angle signal CAN
Hybrid Vehicle Control ECU Assembly

  • Rear Television Camera Assembly

  • Navigation Receiver Assembly*1

  • Radio and Display Receiver Assembly*2

  • Vehicle information signal

  • Reverse signal

 CAN
Skid Control ECU

  • Navigation Receiver Assembly*1

  • Radio and Display Receiver Assembly*2

 Vehicle speed signal CAN
Main Body ECU (Multiplex Network Body ECU) Rear Television Camera Assembly

  • Back door courtesy switch signal

  • Vehicle information signal

 CAN
Power Steering ECU Assembly Rear Television Camera Assembly EPS variation signal CAN
Clearance Warning ECU Assembly*3 Rear Television Camera Assembly Sonar information signal CAN
