PARKING ASSIST MONITOR SYSTEM PARTS LOCATION
ILLUSTRATION
| *A | for LHD | - | - |

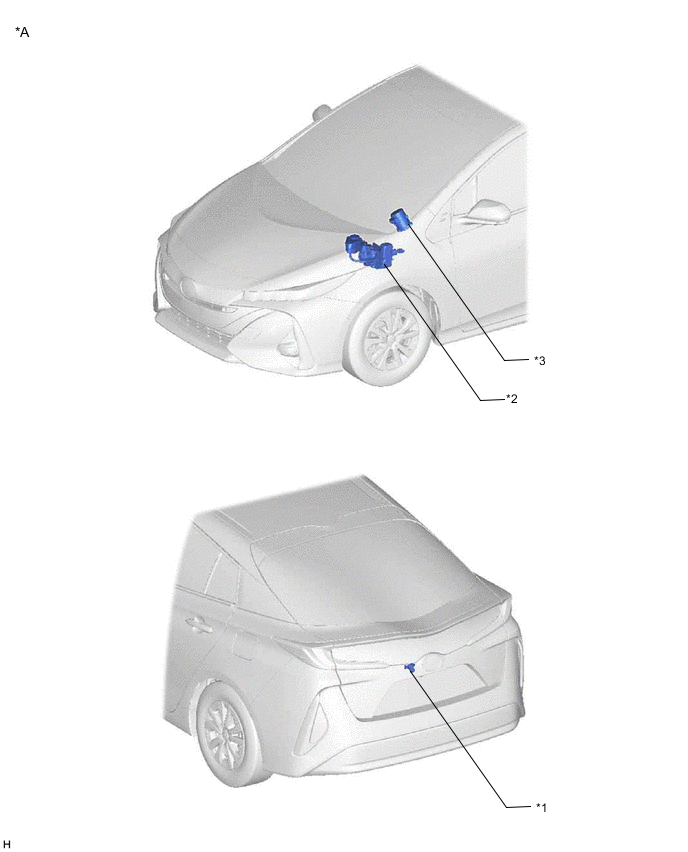

| *1 | REAR TELEVISION CAMERA ASSEMBLY | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
| *3 | POWER STEERING ECU ASSEMBLY | - | - |
ILLUSTRATION
| *A | for RHD | - | - |

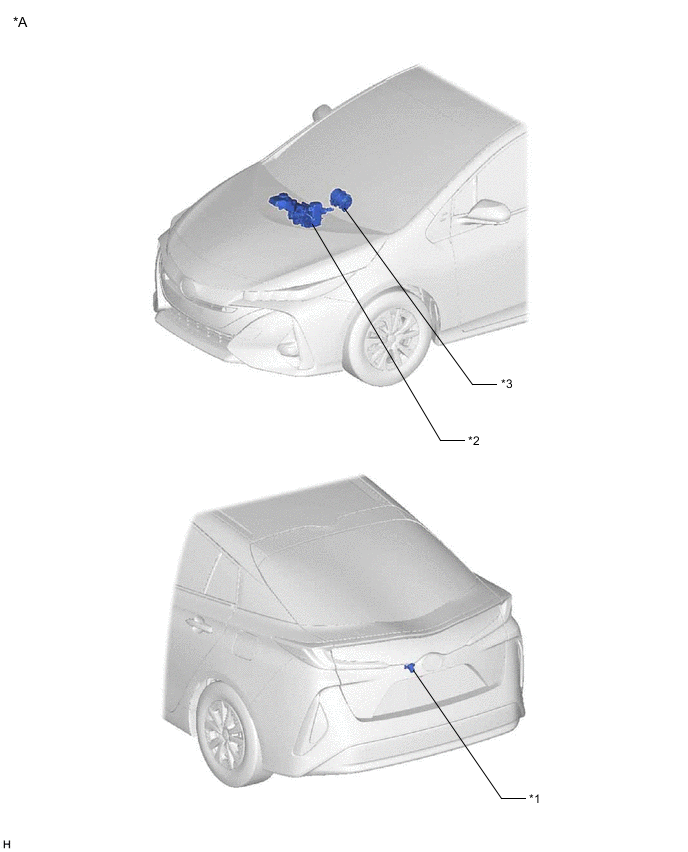

| *1 | REAR TELEVISION CAMERA ASSEMBLY | *2 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - SKID CONTROL ECU |
| *3 | POWER STEERING ECU ASSEMBLY | - | - |
ILLUSTRATION
| *A | for LHD | - | - |

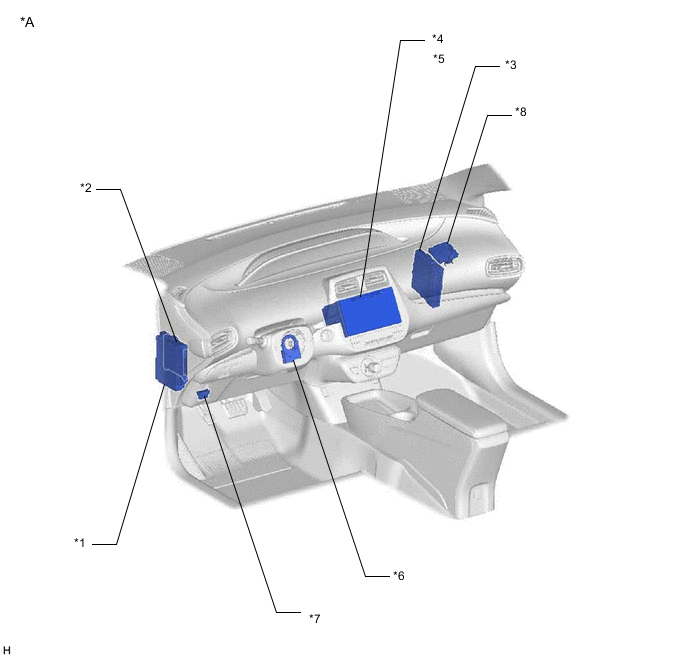

| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 1 FUSE - ECU-IG1 NO. 2 FUSE |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | NAVIGATION RECEIVER ASSEMBLY (for Navigation Receiver Type) |
| *5 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) | *6 | STEERING SENSOR |
| *7 | DLC3 | *8 | CLEARANCE WARNING ECU ASSEMBLY (w/ Toyota Parking Assist-sensor System) |
ILLUSTRATION
| *A | for RHD | - | - |

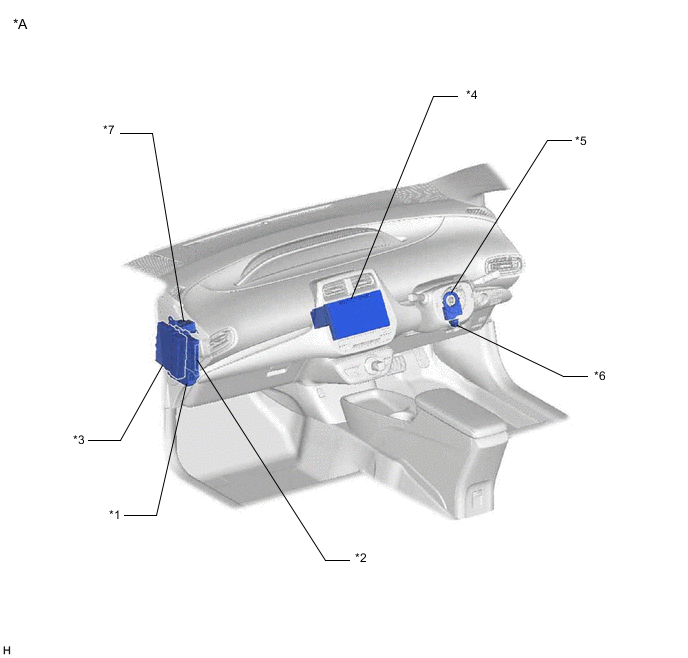

| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 1 FUSE - ECU-IG1 NO. 2 FUSE |
*2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | RADIO AND DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type) |
| *5 | STEERING SENSOR | *6 | DLC3 |
| *7 | CLEARANCE WARNING ECU ASSEMBLY (w/ Toyota Parking Assist-sensor System) | - | - |
