INTELLIGENT CLEARANCE SONAR SYSTEM, Diagnostic DTC:C1625

DTC Code DTC Name
C1625 Open or Short in Steering Angle Sensor +B

DESCRIPTION

This DTC is stored if the clearance warning ECU assembly receives a signal via CAN communication from the steering sensor that indicates a power supply problem.

DTC No. Detection Item DTC Detection Condition Trouble Area
C1625 Open or Short in Steering Angle Sensor +B Open or short in steering sensor power source

  • Harness or connector

  • Steering sensor

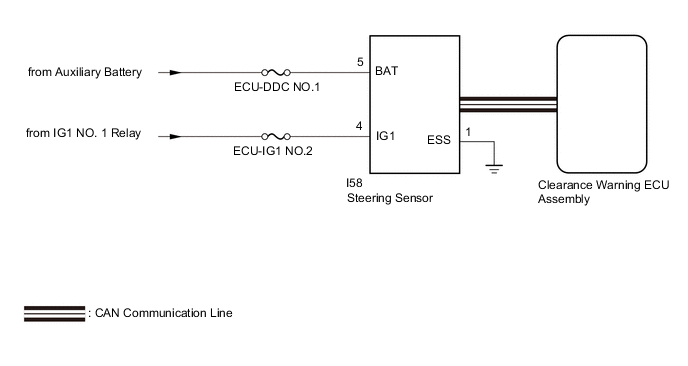

WIRING DIAGRAM

B006HCEE09

CAUTION / NOTICE / HINT

Note


  • After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

    Click here

  • After replacing an ultrasonic sensor or the clearance warning ECU assembly, perform the necessary procedures (adjustment, calibration, initialization or registration).

    Click here

  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (STEERING SENSOR POWER SOURCE)


    1. Disconnect the I58 steering sensor connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      I58-1 (ESS) - Body ground Always Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      I58-4 (IG1) - I58-1 (ESS) Power switch on (IG) 11 to 14 V
      I58-5 (BAT) - I58-1 (ESS) Power switch off 11 to 14 V
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE STEERING SENSOR Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
