NAVIGATION SYSTEM(for Navigation Receiver Type) PARTS LOCATION

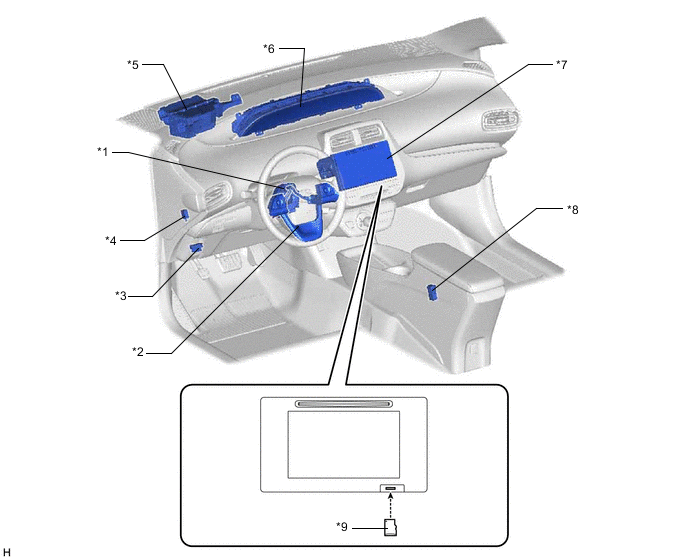

ILLUSTRATION
| *1 | TELEPHONE MICROPHONE ASSEMBLY | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - AMP FUSE |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-DCC NO. 2 FUSE - ECU-IG1 NO. 4 FUSE - METER-IG2 FUSE - PANEL FUSE - RADIO FUSE |
- | - |
ILLUSTRATION
| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | PARKING BRAKE SWITCH ASSEMBLY |
| *5 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) (w/ Headup Display System) - COMBINATION METER MIRROR ECU |
*6 | COMBINATION METER ASSEMBLY - METER CIRCUIT PLATE |
| *7 | NAVIGATION RECEIVER ASSEMBLY | *8 | NO. 1 STEREO JACK ADAPTER ASSEMBLY |
| *9 | SD CARD (DISC PLAYER DISC) | - | - |

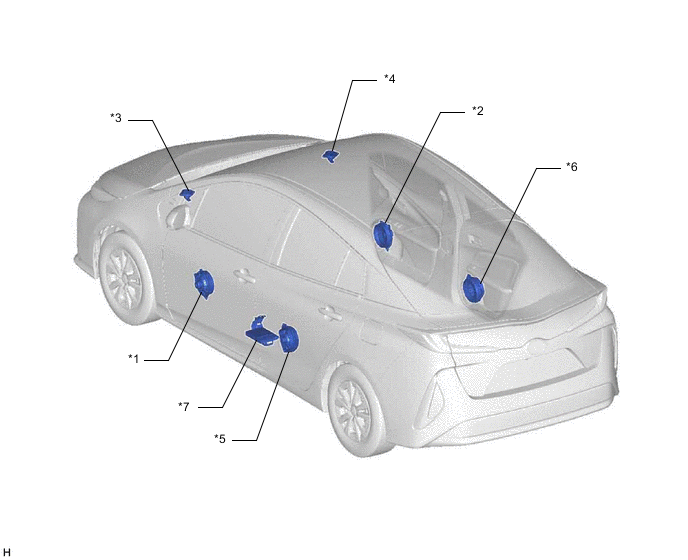

ILLUSTRATION
| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | FRONT NO. 1 SPEAKER ASSEMBLY RH |
| *3 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *4 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *5 | REAR SPEAKER ASSEMBLY LH | *6 | REAR SPEAKER ASSEMBLY RH |
| *7 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |

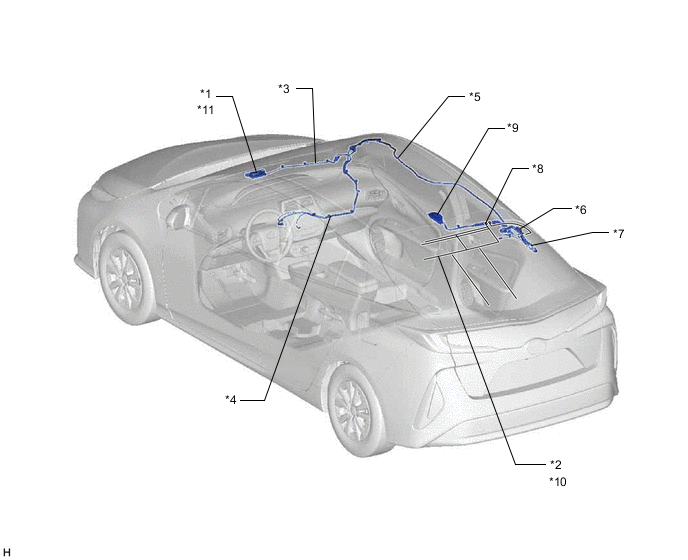

ILLUSTRATION
| *1 | NAVIGATION ANTENNA | *2 | WINDOW GLASS ANTENNA WIRE |
| *3 | ANTENNA CORD SUB-ASSEMBLY (for Navigation Antenna) | *4 | ANTENNA CORD SUB-ASSEMBLY (for Radio Antenna) |
| *5 | NO. 2 ANTENNA CORD SUB-ASSEMBLY | *6 | NO. 4 ANTENNA CORD SUB-ASSEMBLY |
| *7 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *8 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *9 | ROOF ANTENNA ASSEMBLY - AM - FM Main |
*10 | - FM Sub |
| *11 | - GPS | - | - |
