DESCRIPTION
Each unit of the navigation system connected to the AVC-LAN (communication bus) transmits switch signals through the AVC-LAN.
If a short to +B or short to ground occurs in the AVC-LAN, the navigation system will not function normally because communication is not possible.

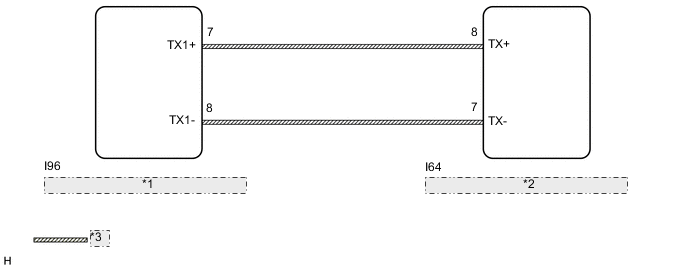

WIRING DIAGRAM
| *1 | Radio and Display Receiver Assembly |
| *2 | Stereo Component Amplifier Assembly |
| *3 | AVC-LAN Communication Line |
CAUTION / NOTICE / HINT
Tech Tips
The radio and display receiver assembly is the master unit.
PROCEDURE
INSPECT RADIO AND DISPLAY RECEIVER ASSEMBLY
Remove the radio and display receiver assembly.

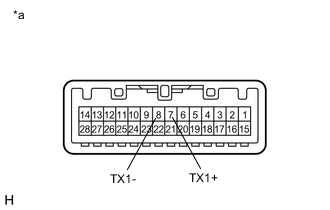

| *a | Component without harness connected (Radio and Display Receiver Assembly) |
Measure the resistance according to the value(s) in the table below.
| Standard Resistance | ||||||
|---|---|---|---|---|---|---|
|
| Result | |||
|---|---|---|---|
|
| NG |
|
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here |
| OK |
|
CHECK HARNESS AND CONNECTOR (AVC-LAN CIRCUIT)
Disconnect the I96 radio and display receiver assembly connector.
Disconnect the I64 stereo component amplifier assembly connector.
Measure the resistance according to the value(s) in the table below.
| Standard Resistance | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
| Result | |||
|---|---|---|---|
|
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
| OK |
|
INSPECT MALFUNCTIONING PARTS
Disconnect and reconnect each slave unit one by one until the master unit returns to normal.
Tech Tips
Check all slave units.
If disconnecting a slave unit causes the master unit to return to normal, the slave unit is defective and should be replaced.
| OK |
|---|
| Master unit returns to normal. |
| Result | |||
|---|---|---|---|
|
| OK |
|
REPLACE MALFUNCTIONING PARTS |
| NG |
|
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY Click here |
