STEREO JACK ADAPTER ASSEMBLY INSTALLATION

PROCEDURE

1. INSTALL NO. 1 STEREO JACK ADAPTER ASSEMBLY




   1.

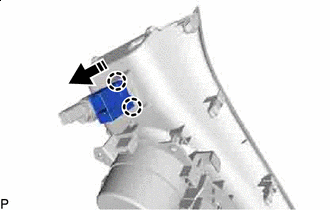

      Install in this Direction

      Engage the 2 claws to install the No. 1 stereo jack adapter assembly as shown in the illustration.

2. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

   Click here

3. INSTALL NO. 1 UPPER BOX PLATE

   Click here
