AMPLIFIER ANTENNA COMPONENTS

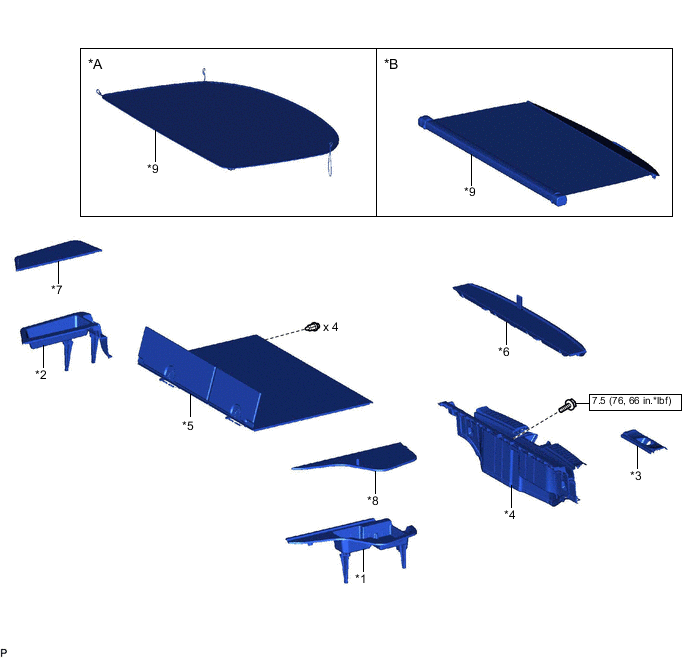

ILLUSTRATION
| *A | w/o Toyota Safety Sense | *B | w/ Toyota Safety Sense |
| *1 | DECK FLOOR BOX LH | *2 | DECK FLOOR BOX RH |
| *3 | DECK TRIM SERVICE HOLE COVER | *4 | REAR DECK TRIM COVER |
| *5 | REAR NO. 1 FLOOR BOARD | *6 | REAR NO. 2 FLOOR BOARD |
| *7 | REAR NO. 3 FLOOR BOARD | *8 | REAR NO. 4 FLOOR BOARD |
| *9 | TONNEAU COVER ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

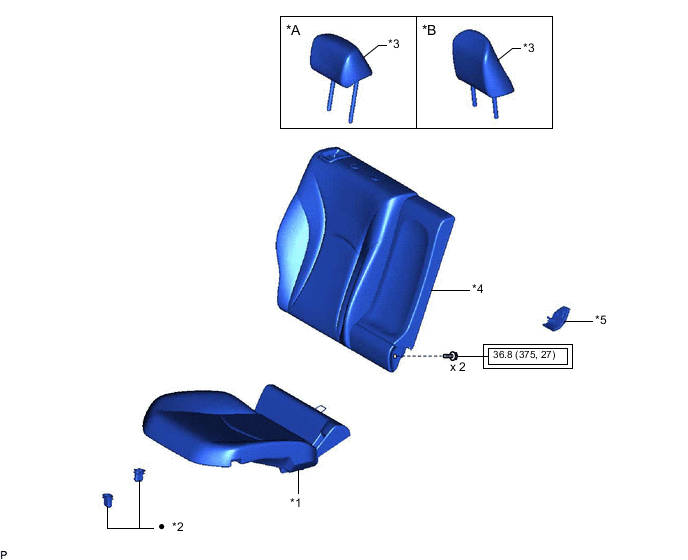

ILLUSTRATION
| *A | for Type A | *B | for Type B |
| *1 | REAR SEAT CUSHION ASSEMBLY RH | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR SEAT HEADREST ASSEMBLY | *4 | REAR SEATBACK ASSEMBLY RH |
| *5 | REAR SEATBACK HINGE COVER | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

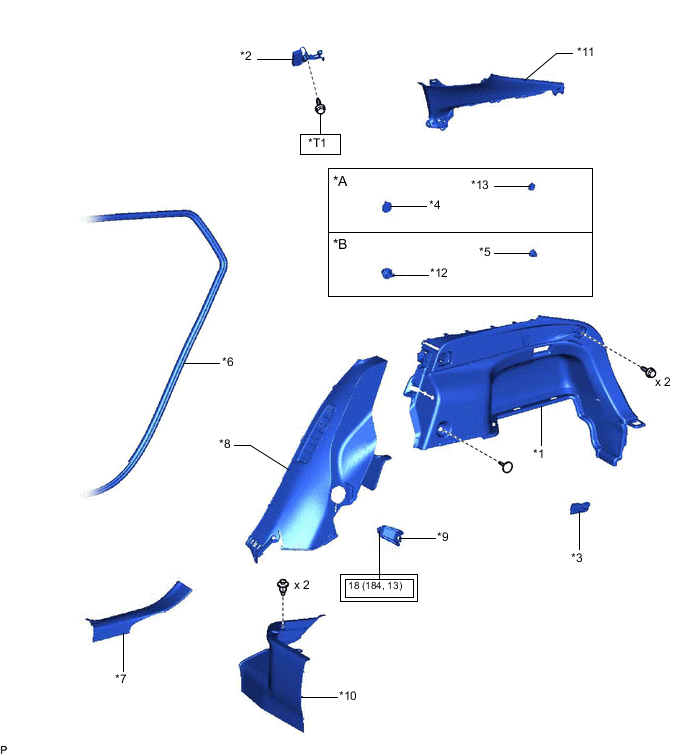

ILLUSTRATION
| *A | w/ Toyota Safety Sense | *B | w/o Toyota Safety Sense |
| *1 | DECK TRIM SIDE PANEL ASSEMBLY RH | *2 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY |
| *3 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY | *4 | NO. 1 TONNEAU COVER HOLDER CAP |
| *5 | NO. 2 ROPE HOOK | *6 | REAR DOOR OPENING TRIM WEATHERSTRIP RH |
| *7 | REAR DOOR SCUFF PLATE RH | *8 | REAR SEAT SIDE GARNISH RH |
| *9 | REAR SEATBACK HINGE SUB-ASSEMBLY RH | *10 | REAR UNDER SIDE COVER RH |
| *11 | ROOF SIDE INNER GARNISH ASSEMBLY RH | *12 | ROPE HOOK |
| *13 | TONNEAU COVER HOOK A | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| *T1 | for Type A: 8.3 (85, 73 in.*lbf) for Type B: 10 (102, 7) |
- | - |
