FRONT DOOR SPEAKER COMPONENTS

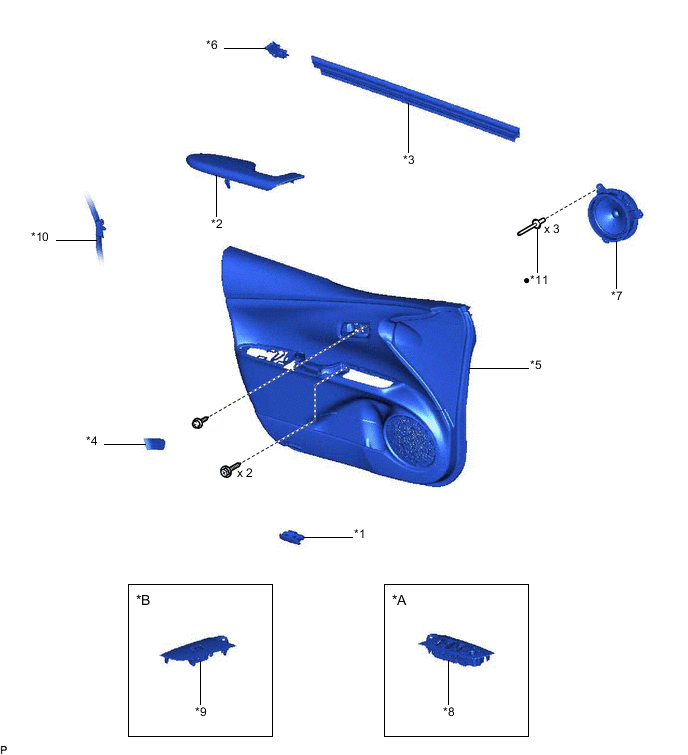

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | COURTESY LIGHT ASSEMBLY | *2 | FRONT ARMREST ASSEMBLY |
| *3 | FRONT DOOR INNER GLASS WEATHERSTRIP | *4 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
| *5 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY | *6 | FRONT DOOR VENT SEAL |
| *7 | FRONT NO. 1 SPEAKER ASSEMBLY | *8 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
| *9 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL | *10 | FRONT DOOR WEATHERSTRIP |
| *11 | RIVET | - | - |
| ● | Non-reusable part | - | - |
