AUDIO AND VISUAL SYSTEM PARTS LOCATION
ILLUSTRATION

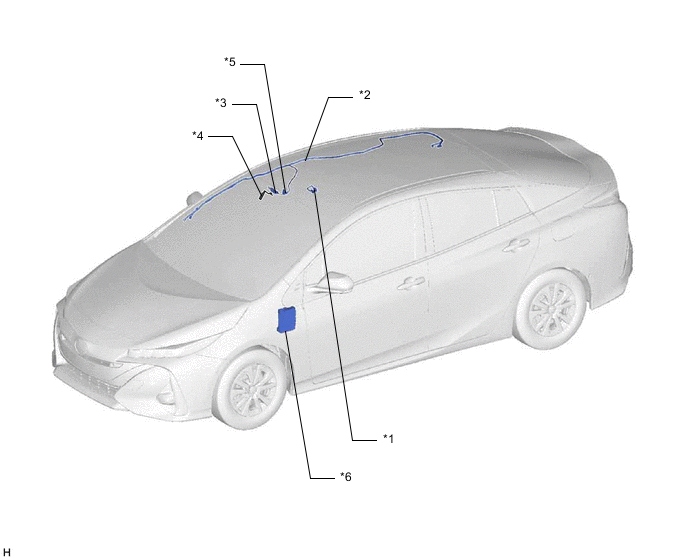

| *1 | TELEPHONE MICROPHONE ASSEMBLY | *2 | NO. 2 ANTENNA CORD SUB-ASSEMBLY |
| *3 | DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY - DAB |
*4 | WINDOW GLASS ANTENNA WIRE |
| *5 | NO. 5 ANTENNA CORD SUB-ASSEMBLY | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-ACC FUSE - ECU-IG1 NO. 4 FUSE - PANEL FUSE - ECU-DCC NO. 2 FUSE - RADIO FUSE - METER-IG2 FUSE |
ILLUSTRATION

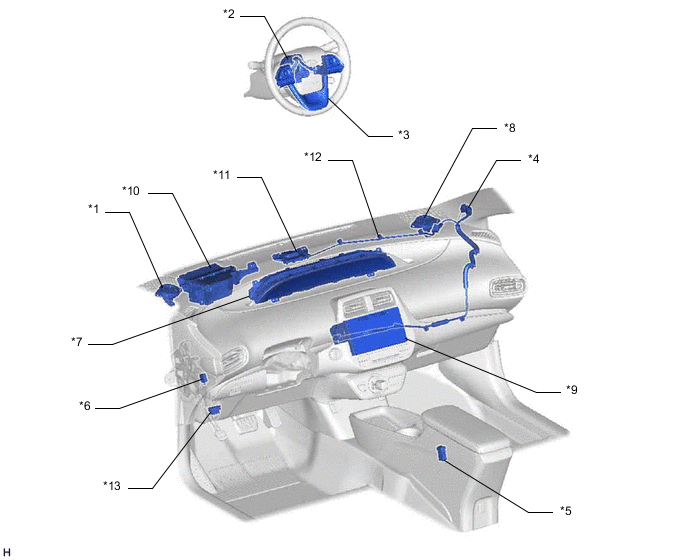

| *1 | FRONT NO. 2 SPEAKER ASSEMBLY LH | *2 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | ANTENNA CORD SUB-ASSEMBLY (for Radio Antenna) |
| *5 | NO. 1 STEREO JACK ADAPTER ASSEMBLY | *6 | PARKING BRAKE SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY - METER CIRCUIT PLATE |
*8 | FRONT NO. 2 SPEAKER ASSEMBLY RH |
| *9 | RADIO AND DISPLAY RECEIVER ASSEMBLY | *10 | HEADUP DISPLAY (METER MIRROR SUB-ASSEMBLY) - COMBINATION METER MIRROR ECU |
| *11 | NAVIGATION ANTENNA ASSEMBLY - GPS |
*12 | ANTENNA CORD SUB-ASSEMBLY (for Navigation Antenna) |
| *13 | DLC3 | - | - |
ILLUSTRATION

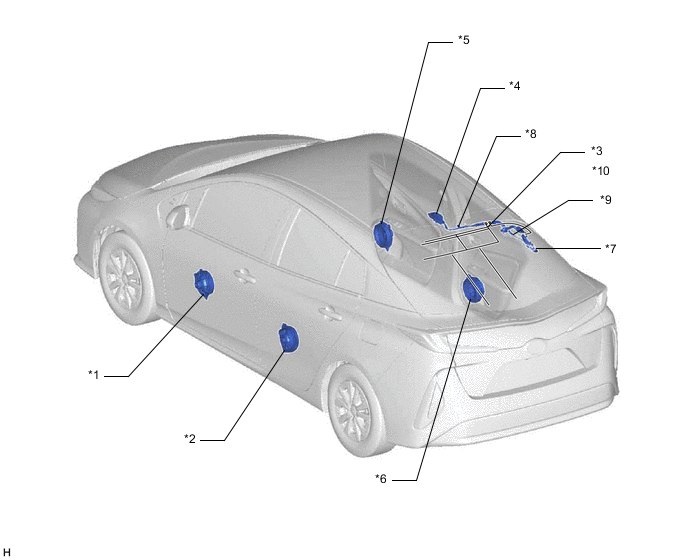

| *1 | FRONT NO. 1 SPEAKER ASSEMBLY LH | *2 | REAR SPEAKER ASSEMBLY LH |
| *3 | WINDOW GLASS ANTENNA WIRE | *4 | ROOF ANTENNA ASSEMBLY - FM Main - AM |
| *5 | FRONT NO. 1 SPEAKER ASSEMBLY RH | *6 | REAR SPEAKER ASSEMBLY RH |
| *7 | NO. 1 AMPLIFIER ANTENNA ASSEMBLY | *8 | NO. 3 ANTENNA CORD SUB-ASSEMBLY |
| *9 | NO. 4 ANTENNA CORD SUB-ASSEMBLY | *10 | - FM Sub |
