STEERING COLUMN ASSEMBLY COMPONENTS
ILLUSTRATION

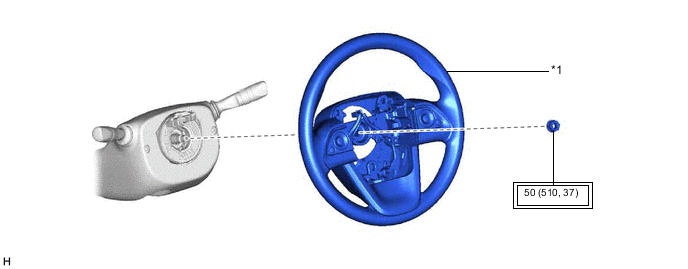

| *1 | STEERING WHEEL ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

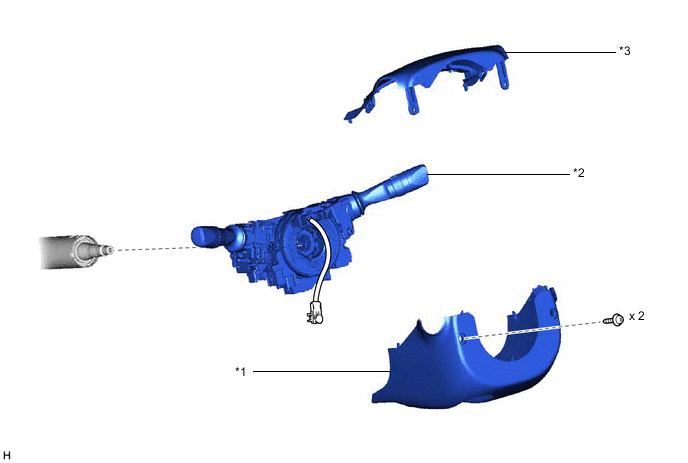

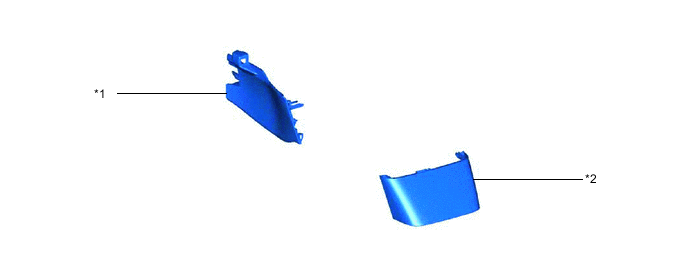

| *1 | LOWER STEERING COLUMN COVER SUB-ASSEMBLY | *2 | TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY |
| *3 | UPPER STEERING COLUMN COVER | - | - |
ILLUSTRATION
| *1 | FRONT NO. 1 CONSOLE BOX INSERT | *2 | LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
ILLUSTRATION
| *A | for LHD | - | - |

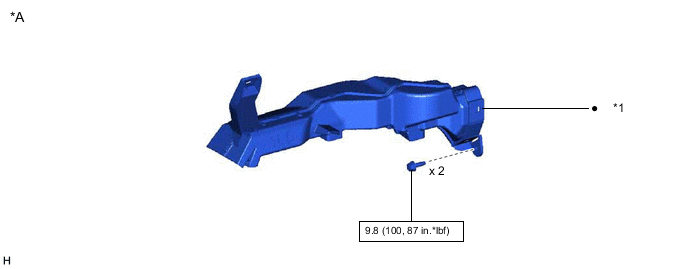

| *1 | NO. 1 AIR DUCT | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | for RHD | - | - |

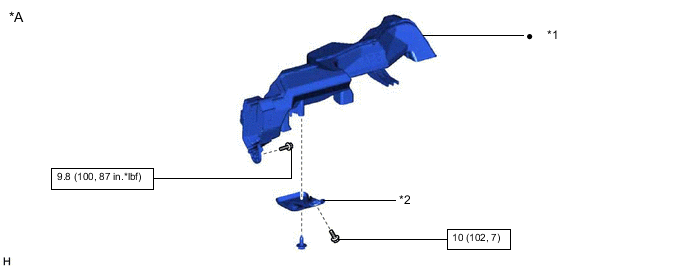

| *1 | NO. 2 AIR DUCT | *2 | PARKING BRAKE MOUNTING BRACKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION

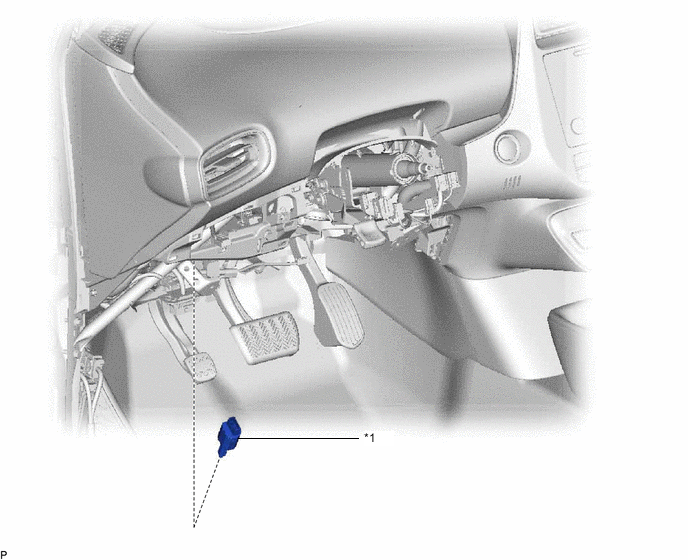

| *1 | STOP LIGHT SWITCH ASSEMBLY | - | - |
ILLUSTRATION
| *A | for LHD | - | - |

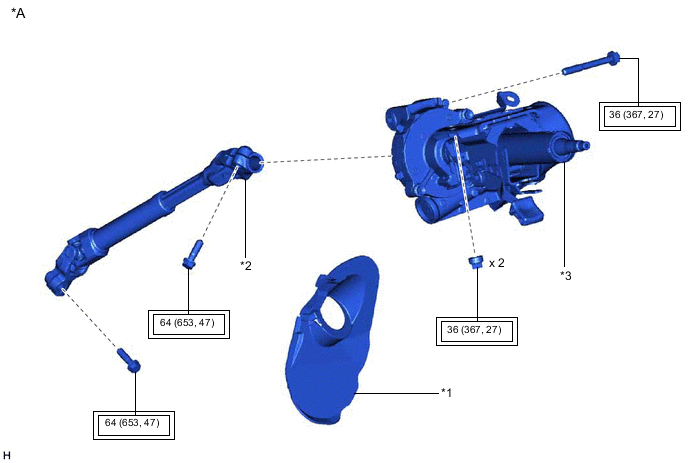

| *1 | COLUMN HOLE COVER SILENCER SHEET | *2 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 | STEERING COLUMN ASSEMBLY | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *A | for RHD | - | - |

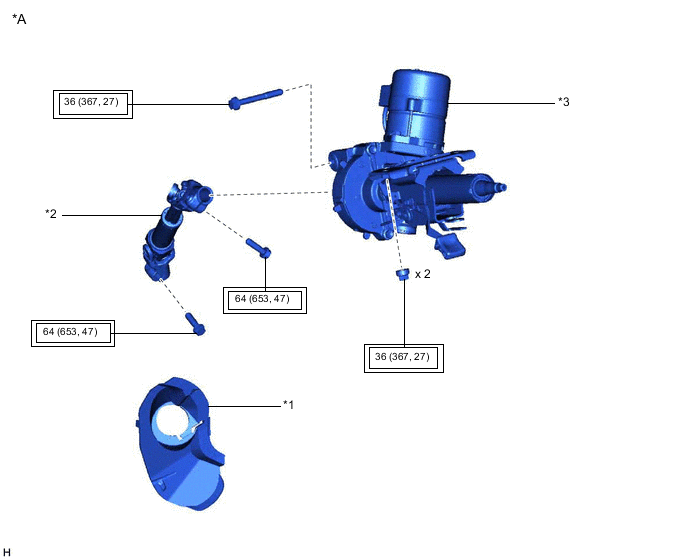

| *1 | COLUMN HOLE COVER SILENCER SHEET | *2 | NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
| *3 | STEERING COLUMN ASSEMBLY | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION
| *A | for LHD | - | - |

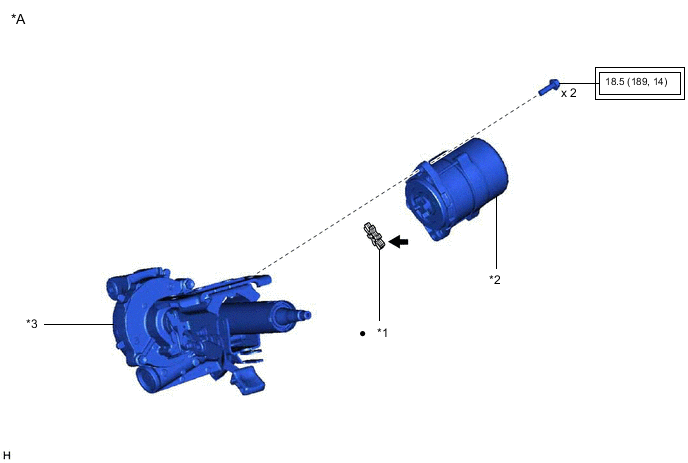

| *1 | ELECTRIC POWER STEERING MOTOR SHAFT DAMPER | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Grease | - | - |
ILLUSTRATION
| *A | for RHD | - | - |

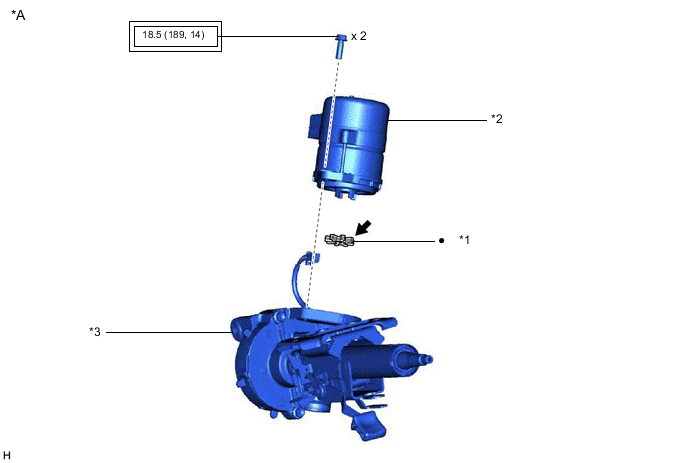

| *1 | ELECTRIC POWER STEERING MOTOR SHAFT DAMPER | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| |
Grease | - | - |
