REAR AXLE CARRIER COMPONENTS

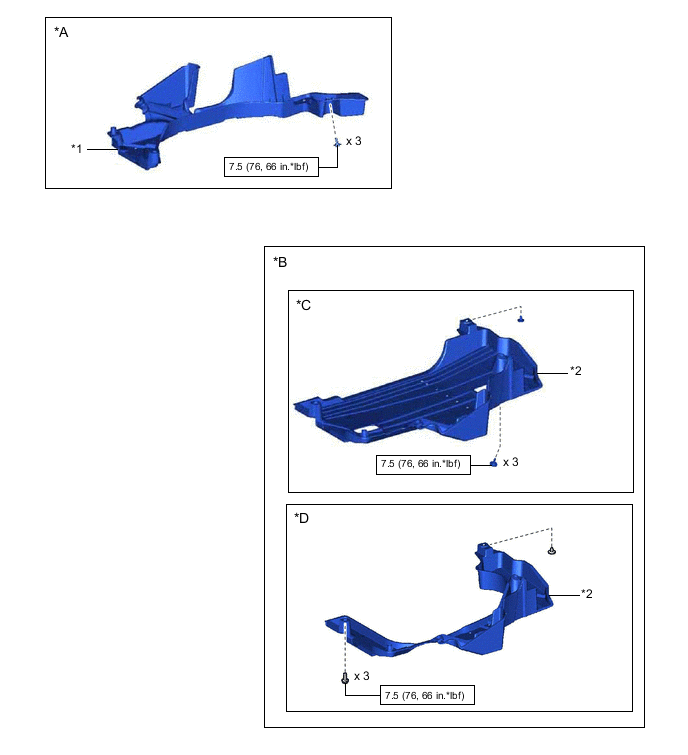

ILLUSTRATION
| *A | for RH Side | *B | for LH Side |
| *C | w/o Canister Pump Module | *D | w/ Canister Pump Module |
| *1 | NO. 1 FLOOR UNDER COVER ASSEMBLY | *2 | REAR FLOOR SIDE MEMBER COVER LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

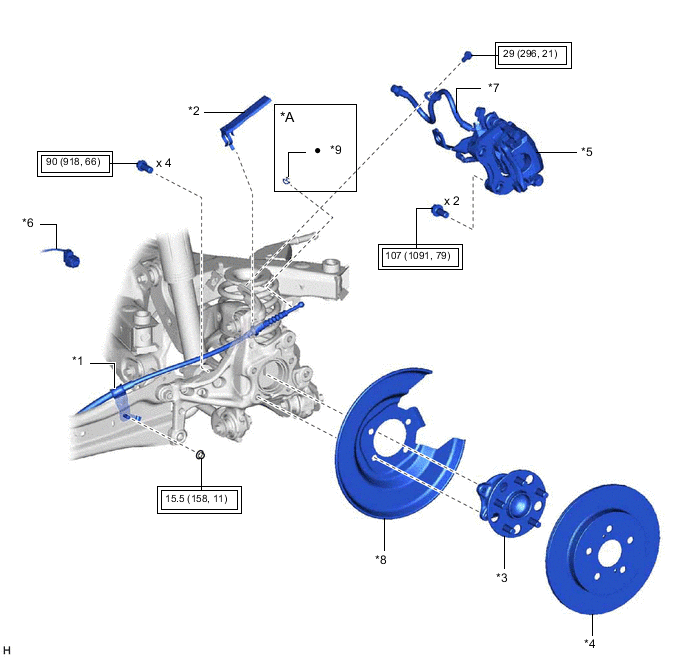

ILLUSTRATION
| *A | w/ Clip | - | - |
| *1 | NO. 3 PARKING BRAKE CABLE ASSEMBLY | *2 | PARKING BRAKE LEVER PROTECTOR |
| *3 | REAR AXLE HUB AND BEARING ASSEMBLY | *4 | REAR DISC |
| *5 | REAR DISC BRAKE CALIPER ASSEMBLY | *6 | SKID CONTROL SENSOR WIRE |
| *7 | REAR FLEXIBLE HOSE | *8 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY |
| *9 | CLIP | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
ILLUSTRATION
| *1 | FLEXIBLE HOSE BRACKET | *2 | REAR AXLE CARRIER SUB-ASSEMBLY |
| *3 | REAR COIL SPRING | *4 | REAR LOWER COIL SPRING INSULATOR |
| *5 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | *6 | REAR NO. 2 SUSPENSION ARM ASSEMBLY |
| *7 | REAR STABILIZER LINK ASSEMBLY | *8 | REAR TRAILING ARM ASSEMBLY |
| *9 | REAR STABILIZER BAR | *10 | REAR UPPER CONTROL ARM ASSEMBLY |
| *11 | REAR SHOCK ABSORBER ASSEMBLY | *12 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
| *13 | NO. 2 CAMBER ADJUST CAM | *14 | PLATE WASHER |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |
