NETWORK GATEWAY ECU COMPONENTS
ILLUSTRATION

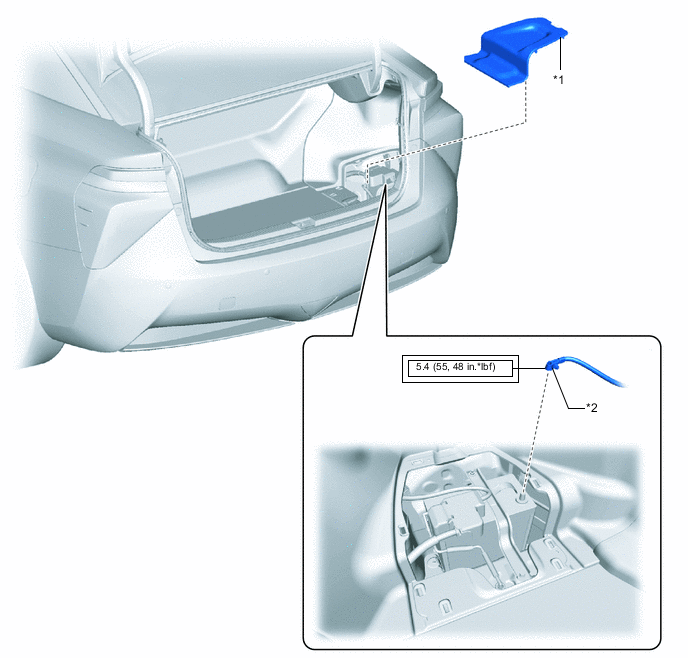

| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
ILLUSTRATION

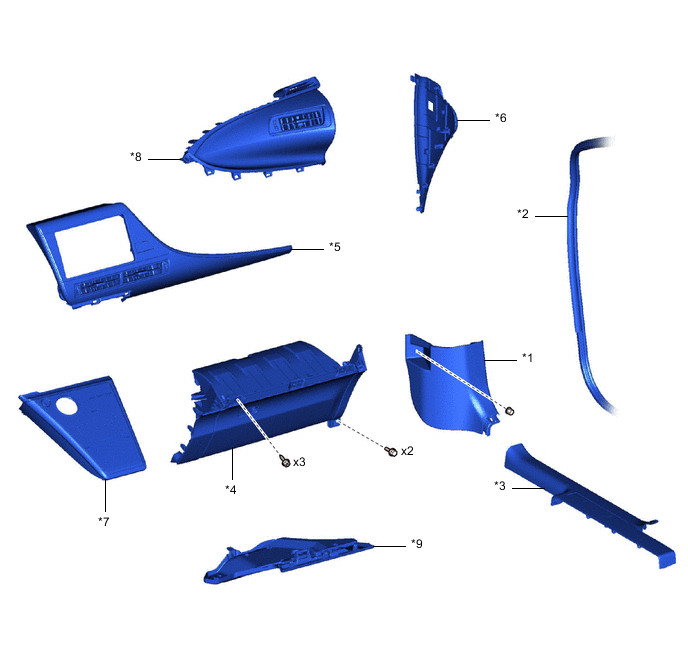

| *1 | COWL SIDE TRIM BOARD RH | *2 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *3 | FRONT DOOR SCUFF PLATE RH | *4 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| *5 | INSTRUMENT PANEL CENTER REGISTER ASSEMBLY | *6 | INSTRUMENT SIDE PANEL RH |
| *7 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *8 | NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY |
| *9 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
ILLUSTRATION

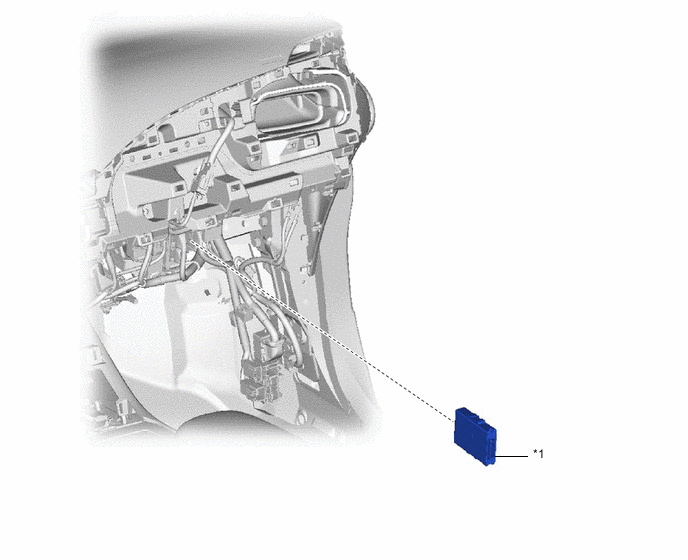

| *1 | NETWORK GATEWAY ECU | - | - |
