LIN COMMUNICATION SYSTEM Rain Sensor LIN Communication Malfunction

DESCRIPTION

A malfunction occurs in LIN communication of the components related to the rain sensor between the rain sensor and windshield wiper relay assembly.

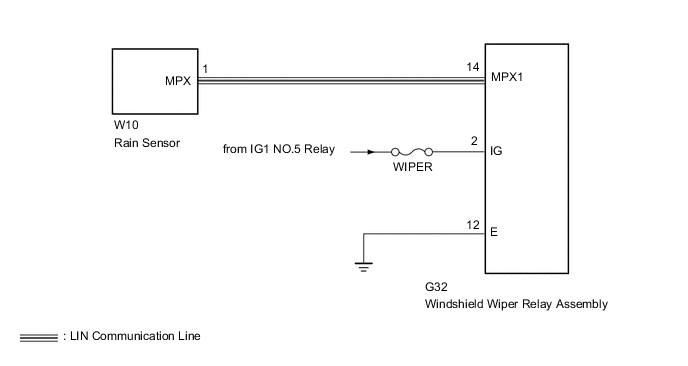

WIRING DIAGRAM

A01MHUYE07

CAUTION / NOTICE / HINT

Note


  • When using the GTS with the power switch off to troubleshoot:

    Connect the GTS to the vehicle, and turn a courtesy light switch on and off at 1.5 second intervals until communication between the GTS and vehicle begins.

  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - RAIN SENSOR)


    1. Disconnect the G32 windshield wiper relay assembly connector.

    2. Disconnect the W10 rain sensor connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      G32-14 (MPX1) - W10-1 (MPX) Always Below 1 Ω
      G32-14 (MPX1) or W10-1 (MPX)- Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. CHECK HARNESS AND CONNECTOR (WINDSHIELD WIPER RELAY ASSEMBLY - POWER SOURCE CIRCUIT)

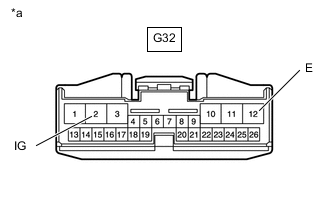

    A01MJ8KC08
    *a

    Front view wire harness connector

    (to Windshield Wiper Relay Assembly)

    1. Disconnect the windshield wiper relay assembly connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      G32-12 (E) - Body ground Always Below 1 Ω

    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      G32-2 (IG) - Body ground Power switch on (IG) 11 to 14 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. REPLACE WINDSHIELD WIPER RELAY ASSEMBLY


    1. Temporarily replace the windshield wiper relay assembly with a new or normally functioning one.

      Click here

    2. Check the rain sensor function.

      Click here

      Result
      Result Proceed to
      Rain sensor function is normal A
      Rain sensor function is not normal B

    A

    END (WINDSHIELD WIPER RELAY ASSEMBLY WAS DEFECTIVE)

    B

    REPLACE RAIN SENSOR Click here
