MAIN BODY ECU(for LHD) COMPONENTS
ILLUSTRATION
| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

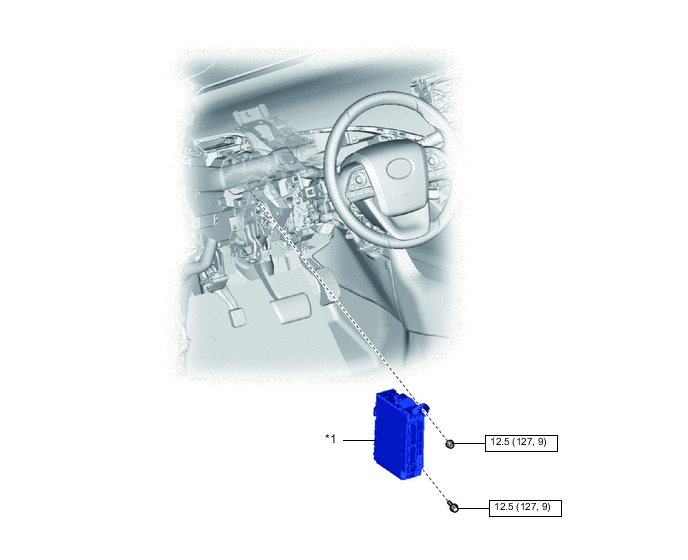

ILLUSTRATION
| *1 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

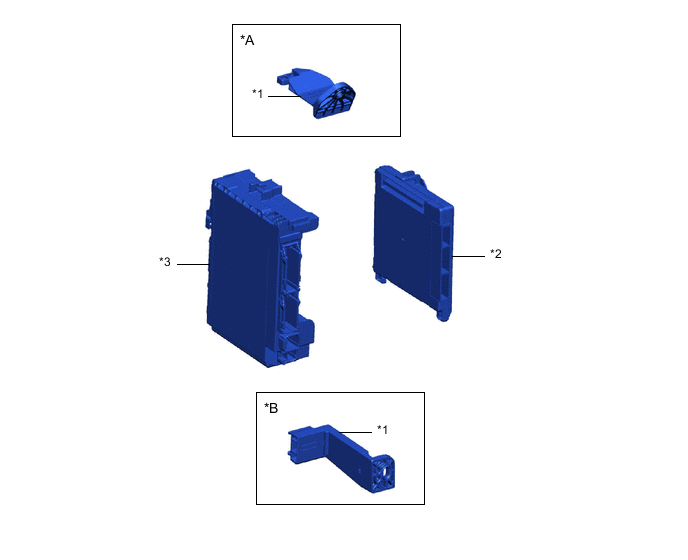

ILLUSTRATION
| *A | for Upper Side | *B | for Lower Side |
| *1 | JUNCTION BLOCK BRACKET | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | - | - |
