CLEARANCE WARNING ECU(for RHD) REMOVAL

PROCEDURE

1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

   Click here

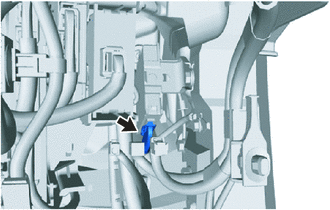

2. REMOVE CLEARANCE WARNING ECU ASSEMBLY




   1.

      Disconnect the connector.

   2.

      Remove the bolt.

   3. Disengage the guide to remove the clearance warning ECU assembly.
