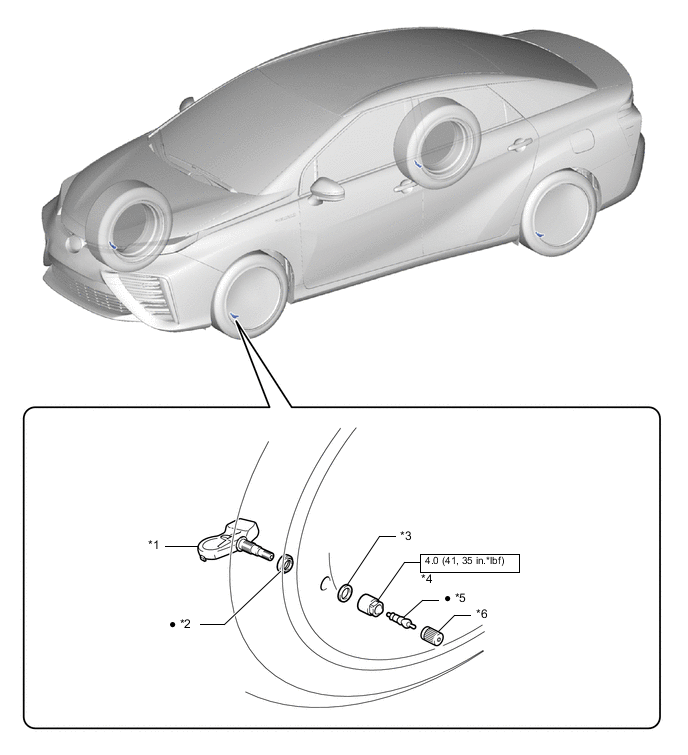

TIRE PRESSURE WARNING VALVE COMPONENTS
ILLUSTRATION
| *1 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER | *2 | GROMMET |
| *3 | WASHER | *4 | NUT |
| *5 | VALVE CORE | *6 | TIRE VALVE CAP |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *1 | TIRE PRESSURE WARNING VALVE AND TRANSMITTER | *2 | GROMMET |
| *3 | WASHER | *4 | NUT |
| *5 | VALVE CORE | *6 | TIRE VALVE CAP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
