DRIVING SUPPORT ECU(for RHD) COMPONENTS
ILLUSTRATION
| *1 | LUGGAGE TRIM SERVICE HOLE COVER | *2 | NEGATIVE AUXILIARY BATTERY TERMINAL |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |

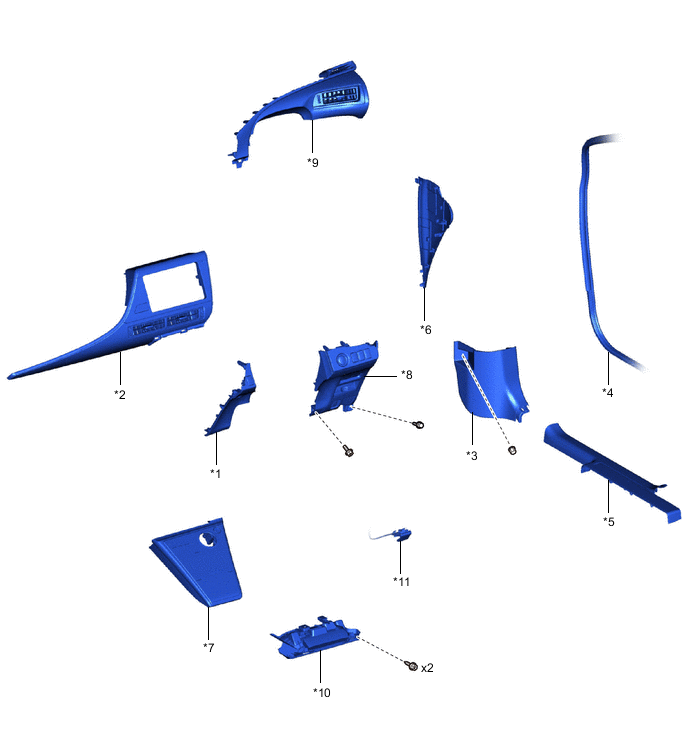

ILLUSTRATION
| *1 | CENTER INSTRUMENT CLUSTER UPPER FINISH PANEL | *2 | INSTRUMENT CENTER PANEL REGISTER ASSEMBLY |
| *3 | COWL SIDE TRIM BOARD RH | *4 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
| *5 | FRONT DOOR SCUFF PLATE RH | *6 | INSTRUMENT SIDE PANEL RH |
| *7 | INTEGRATION CONTROL AND PANEL ASSEMBLY | *8 | LOWER INSTRUMENT PANEL FINISH PANEL |
| *9 | NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY | *10 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *11 | HOOD LOCK CONTROL LEVER SUB-ASSEMBLY | - | - |

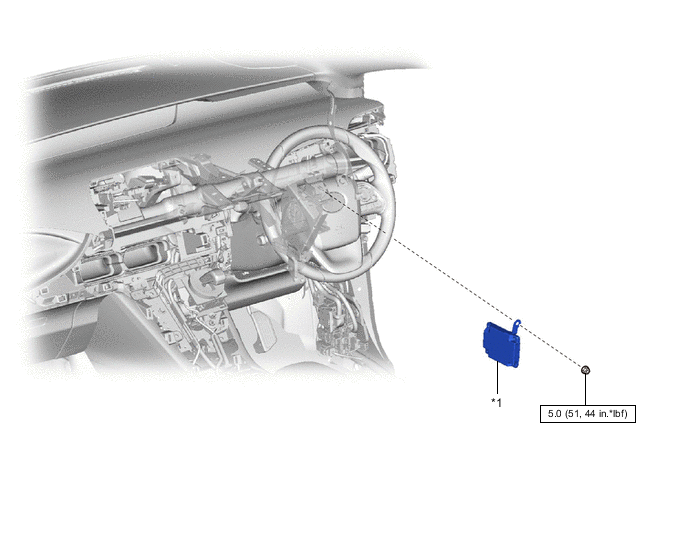

ILLUSTRATION
| *1 | DRIVING SUPPORT ECU ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
