FRONT BUMPER(for Resin Type Bumper) REMOVAL

Click here
Click here

PROCEDURE


  1. Click here

    REMOVE NO. 1 RADIATOR GRILLE RETAINER


    1. B0069F3

      Remove the 8 clips and No. 1 radiator grille retainer.

  2. Click here

    REMOVE FRONT BUMPER COVER


    1. for Type A:


      1. B0068FDC02
        *A for Standard Body
        *B for Wide Body
        *a 90°
        B0069FO Rotation Direction

        Using a screwdriver, turn the pin hold clip 90° and remove the pin hold clip.

        Tip:

        Use the same procedure for the pin hold clips on the other side.

      2. Remove the clip.

        Tip:

        Use the same procedure for the clip on the other side.

      3. B0068YEC01
        *a Bolt
        *b Screw

        Remove the 6 screws and 3 bolts.

      4. B0068PKC02
        *A for Standard Body *B for Wide Body
        B00692L Protective Tape - -

        Put protective tape around the front bumper cover.

      5. B0068Z8C01
        *a Bolt
        *b Screw

        Remove the 2 screws and 2 bolts.

      6. B0068Y0

        w/o Energy Absorber:

        Remove the 3 screws.

      7. B0068XLC01
        B0068HS Screw
        B006964 Clip

        w/ Energy Absorber:

        Remove the 3 screws and 2 clips.

      8. B0068FBC01
        B0068AS Place Hands Here
        B0069FO Remove in this Direction

        for Standard Body:

        Detach the claw as shown in the illustration.

        Tip:

        Use the same procedure for the claw on the other side.

      9. B0068LIC01
        B0068AS Place Hands Here
        B0069FO Remove in this Direction

        for Wide Body:

        Detach the claw as shown in the illustration.

        Tip:

        Use the same procedure for the claw on the other side.

      10. w/ Fog Light:

        Disconnect the 2 connectors.

      11. w/ Pre-crash Safety System:

        Disconnect the connector.

      12. B006955C01
        *A for Standard Body
        *B for Wide Body
        B0069FO Remove in this Direction

        Remove the front bumper cover as shown in the illustration.

    2. for Type B:

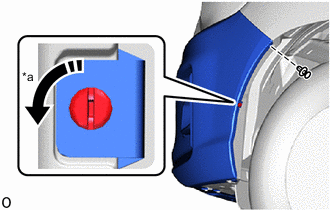

      1. B00693AC01
        *a 90°
        B0069FO Rotation Direction

        Using a screwdriver, turn the pin hold clip 90° and remove the pin hold clip.

        Tip:

        Use the same procedure for the pin hold clips on the other side.

      2. Remove the clip.

        Tip:

        Use the same procedure for the clip on the other side.

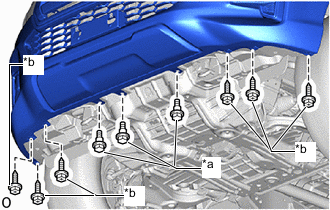

      3. B006937C01
        *a Bolt
        *b Screw

        Remove the 6 screws and 3 bolts.

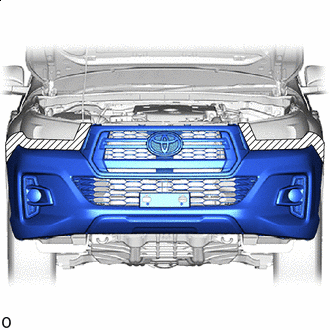

      4. B0068R4C01
        B00692L Protective Tape

        Put protective tape around the front bumper cover.

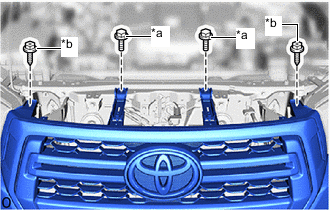

      5. B0068Q0C01
        *a Bolt
        *b Screw

        Remove the 2 screws and 2 bolts.

      6. B0068R2

        w/o Energy Absorber:

        Remove the 3 screws.

      7. B0068OEC01
        B0068HS Screw
        B006964 Clip

        w/ Energy Absorber:

        Remove the 3 screws and 2 clips.

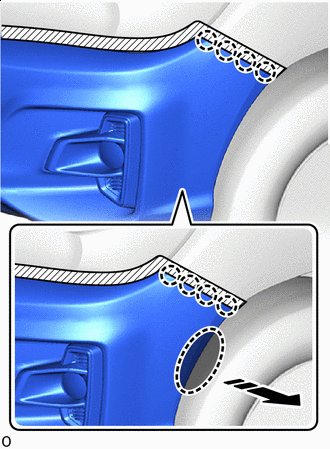

      8. B0068UMC01
        B0068AS Place Hands Here
        B0069FO Remove in this Direction

        Detach the claw as shown in the illustration.

        Tip:

        Use the same procedure for the claw on the other side.

      9. Disconnect the 2 connectors.

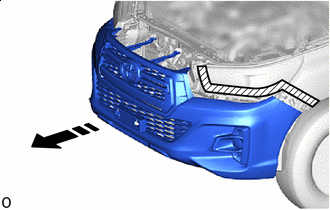

      10. B00695EC01
        B0069FO Remove in this Direction

        Remove the front bumper cover as shown in the illustration.

  3. Click here

    REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER (w/ Energy Absorber)


    1. B0068DWC01
      B0069FO Remove in this Direction

      Remove the 3 bolts and front bumper No. 2 energy absorber as shown in the illustration.

  4. Click here

    REMOVE RADIATOR SIDE DEFLECTOR LH


    1. for Type A:


      1. B0068VDC01
        B0069FO Remove in this Direction

        w/ Intercooler, w/ Energy Absorber:

        Detach the claw and remove the radiator side deflector LH as shown in the illustration.

      2. B0069D7C01
        B0069FO Remove in this Direction

        w/ Intercooler, w/o Energy Absorber:

        Detach the claw and remove the radiator side deflector LH as shown in the illustration.

      3. B0068QRC01
        B0069FO Remove in this Direction

        w/o Intercooler, w/ Energy Absorber:

        Detach the claw and remove the radiator side deflector LH as shown in the illustration.

      4. B00699FC01
        B0069FO Remove in this Direction

        w/o Intercooler, w/o Energy Absorber:

        Detach the claw and remove the radiator side deflector LH as shown in the illustration.

    2. for Type B:

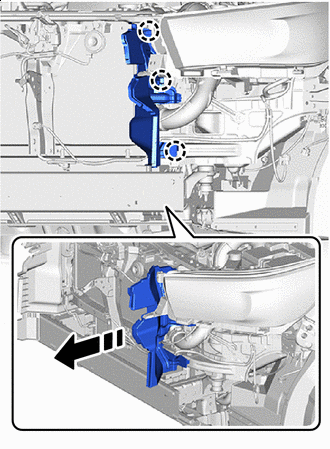

      1. B0068WOC01
        B0069FO Remove in this Direction

        w/ Energy Absorber:

        Detach the claw and remove the radiator side deflector LH as shown in the illustration.

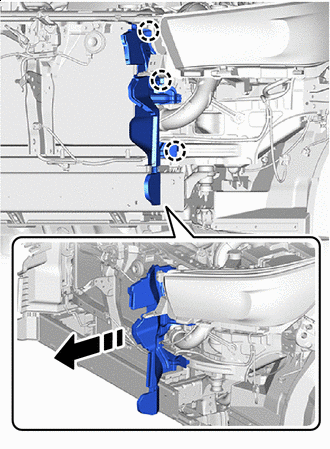

      2. B0068DTC01
        B0069FO Remove in this Direction

        w/o Energy Absorber:

        Detach the claw and remove the radiator side deflector LH as shown in the illustration.

  5. Click here

    REMOVE RADIATOR SIDE DEFLECTOR RH

    Tip:

    Use the same procedure described for the LH side.

  6. Click here

    REMOVE FRONT BUMPER NO. 2 SIDE SUPPORT LH (w/ Energy Absorber)


    1. B0068QH

      Remove the 2 bolts and front bumper side support LH.

  7. Click here

    REMOVE FRONT BUMPER NO. 2 SIDE SUPPORT RH (w/ Energy Absorber)

    Tip:

    Use the same procedure described for the LH side.

  8. Click here

    REMOVE FRONT BUMPER STONE DEFLECTOR LH


    1. B0068ADC01
      B0069FO Remove in this Direction

      Detach the claw and guide and remove the front bumper stone deflector LH as shown in the illustration.

  9. Click here

    REMOVE FRONT BUMPER STONE DEFLECTOR RH

    Tip:

    Use the same procedure described for the LH side.

  10. Click here

    REMOVE FRONT BUMPER ENERGY ABSORBER SUB-ASSEMBLY (w/ Energy Absorber)


    1. B0068FZC01
      B0069FO Remove in this Direction

      Detach the clip and remove the front bumper energy absorber sub-assembly as shown in the illustration.

  11. Click here

    REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY


    1. B00699VC01
      B0069FO Remove in this Direction

      Remove the 4 bolts and front bumper reinforcement sub-assembly as shown in the illustration.

  12. Click here

    REMOVE FRONT BUMPER SIDE SUPPORT LH (for Type A (Standard Body))


    1. B00693ZC02
      *a 90°
      B0069FO Rotation Direction
      B0068NX Remove in this Direction

      Remove the bolt and clip.

    2. Using a screwdriver, turn the clip 90° and remove the clip.

    3. Detach the claw and remove the front bumper side support LH as shown in the illustration.

  13. Click here

    REMOVE FRONT BUMPER SIDE SUPPORT RH (for Type A (Standard Body))

    Tip:

    Use the same procedure described for the LH side.

  14. Click here

    REMOVE FRONT BUMPER SIDE SUPPORT LH (for Type A (Wide Body), Type B)


    1. B006920C02
      *a 90°
      B0069FO Rotation Direction
      B0068NX Remove in this Direction

      Remove the bolt and clip.

    2. Using a screwdriver, turn the clip 90° and remove the 2 clips.

    3. Detach the claw and remove the front bumper side support LH as shown in the illustration.

  15. Click here

    REMOVE FRONT BUMPER SIDE SUPPORT RH (for Type A (Wide Body), Type B)

    Tip:

    Use the same procedure described for the LH side.
