OUTER REAR VIEW MIRROR COMPONENTS

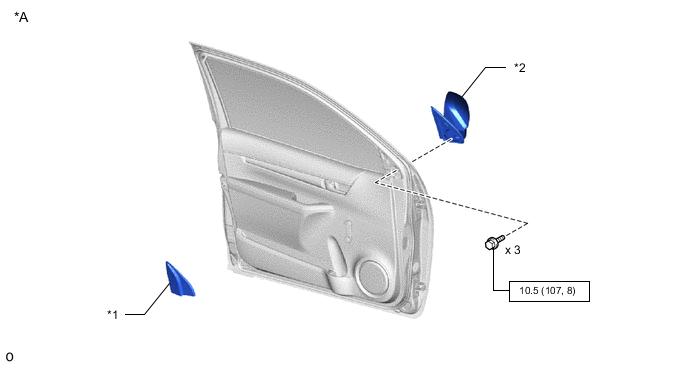

ILLUSTRATION
| *A | w/o Power Mirror Control System | - | - |
| *1 | FRONT DOOR LOWER FRAME BRACKET GARNISH LH | *2 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

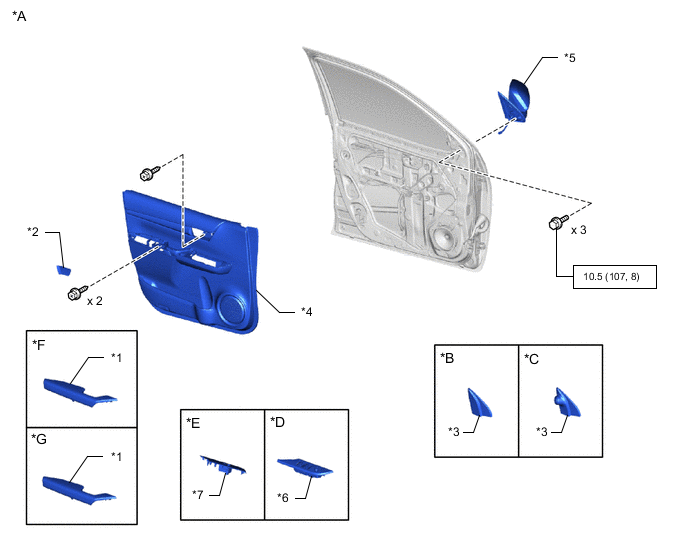

ILLUSTRATION
| *A | w/ Power Mirror Control System | *B | w/o Front No. 2 Speaker |
| *C | w/ Front No. 2 Speaker | *D | for Driver Side |
| *E | for Front Passenger Side | *F | for Single Cab, Smart Cab |
| *G | for Double Cab | - | - |
| *1 | FRONT ARMREST ASSEMBLY LH | *2 | FRONT DOOR INSIDE HANDLE BEZEL PLUG LH |
| *3 | FRONT DOOR LOWER FRAME BRACKET GARNISH LH | *4 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH |
| *5 | OUTER REAR VIEW MIRROR ASSEMBLY LH | *6 | POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL |
| *7 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | w/o Power Mirror Control System | - | - |
| *1 | OUTER MIRROR COVER LH | *2 | OUTER MIRROR LH |
ILLUSTRATION
| *A | w/ Power Mirror Control System | *B | w/ Side Turn Signal Light |
| *1 | OUTER MIRROR COVER LH | *2 | OUTER MIRROR LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *4 | LOWER COVER |
