COOLER EXPANSION VALVE REMOVAL

PROCEDURE

1. Click here

   RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

   Click here

2. Click here

   DISCONNECT AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY (for 1GD-FTV, 2GD-FTV)

   Click here

3. Click here

   DISCONNECT SUCTION PIPE SUB-ASSEMBLY (except 1GD-FTV, 2GD-FTV)

   Click here

4. Click here

   DISCONNECT AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY (except 1GD-FTV, 2GD-FTV)

   Click here

5. Click here

   REMOVE COOLER EXPANSION VALVE



   1.

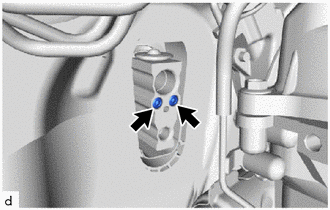

      Using a 4 mm hexagon wrench, remove the 2 hexagon bolts.

   2.

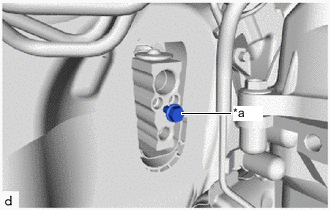

      *a

      6 mm Bolt

      Temporarily install the 6 mm bolt halfway to the cooler expansion valve.

   3.

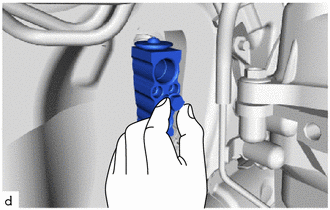

      Hold the bolt and pull it to remove the cooler expansion valve as shown in the illustration.

   4.

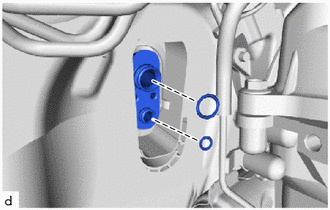

      Remove the 2 O-rings.
