COOLER EXPANSION VALVE COMPONENTS

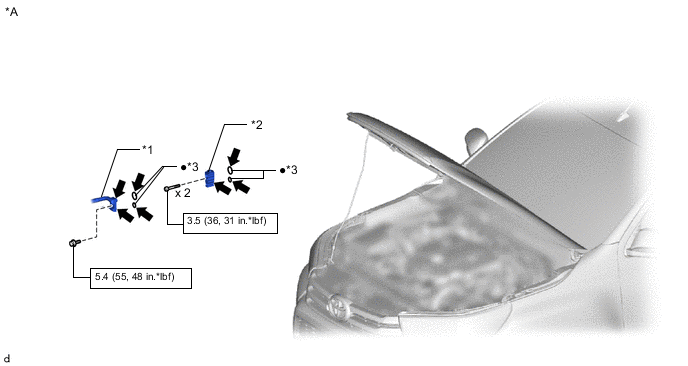

ILLUSTRATION
| *A | for 1GD-FTV, 2GD-FTV | - | - |
| *1 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY | *2 | COOLER EXPANSION VALVE |
| *3 | O-RING | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |

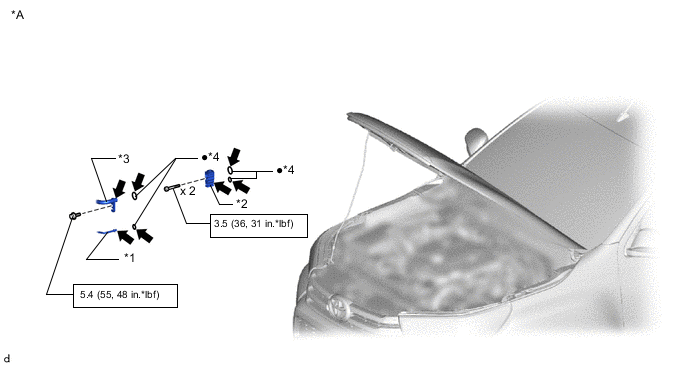

ILLUSTRATION
| *A | except 1GD-FTV, 2GD-FTV | - | - |
| *1 | AIR CONDITIONER TUBE AND ACCESSORY ASSEMBLY | *2 | COOLER EXPANSION VALVE |
| *3 | SUCTION PIPE SUB-ASSEMBLY | *4 | O-RING |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
