AIRBAG CUT-OFF INDICATOR LIGHT INSPECTION

PROCEDURE


  1. INSPECT TELLTALE LIGHT ASSEMBLY (AIRBAG CUT-OFF INDICATOR LIGHT)

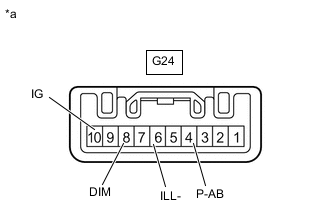

    1. A01LGEEC13
      *a

      Component without harness connected

      (Airbag Cut Off Indicator Light)

      Apply battery voltage to the connector and check the airbag off indicator illumination conditions.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → G24-10 (IG)

      Battery negative (-) → G24-4 (P-AB)

      		 Airbag off indicator illuminates

      Battery positive (+) → G24-10 (IG)

      Battery positive (+) → G24-8 (DIM)

      Battery negative (-) → G24-4 (P-AB)

      Battery negative (-) → G24-6 (ILL-)

      		 Airbag off indicator illuminates in dimmed state

      If the result is not as specified, replace the telltale light assembly.

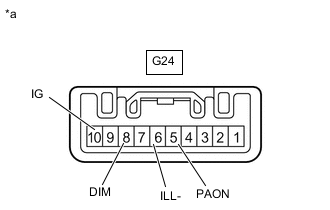

    2. A01LGEEC14
      *a

      Component without harness connected

      (Airbag Cut Off Indicator Light)

      Apply battery voltage to the connector and check the airbag on indicator illumination conditions.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → G24-10 (IG)

      Battery negative (-) → G24-5 (PAON)

      		 Airbag on indicator illuminates

      Battery positive (+) → G24-10 (IG)

      Battery positive (+) → G24-8 (DIM)

      Battery negative (-) → G24-5 (PAON)

      Battery negative (-) → G24-6 (ILL-)

      		 Airbag on indicator illuminates in dimmed state

      If the result is not as specified, replace the telltale light assembly.
