AIRBAG CUT-OFF INDICATOR LIGHT REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    for Type A:

    Click here

    for Type B:

    Click here

    B0069A2

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    B00693Q

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Click here

  4. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

    Click here

  5. REMOVE NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY

    Click here

  6. REMOVE INTEGRATION PANEL SUB-ASSEMBLY (for Manual Air Conditioning System)

    Click here

  7. DISCONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY (for Manual Air Conditioning System)

    Click here

  8. DISCONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY (for Manual Air Conditioning System)

    Click here

  9. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Automatic Air Conditioning System)

    Click here

  10. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Click here

  11. REMOVE TELLTALE LIGHT ASSEMBLY

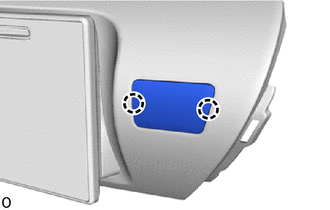

    1. B0024DO

      Detach the 2 claws and remove the telltale light assembly.
