FRONT SEAT SIDE AIRBAG ASSEMBLY(for Power Seat) COMPONENTS

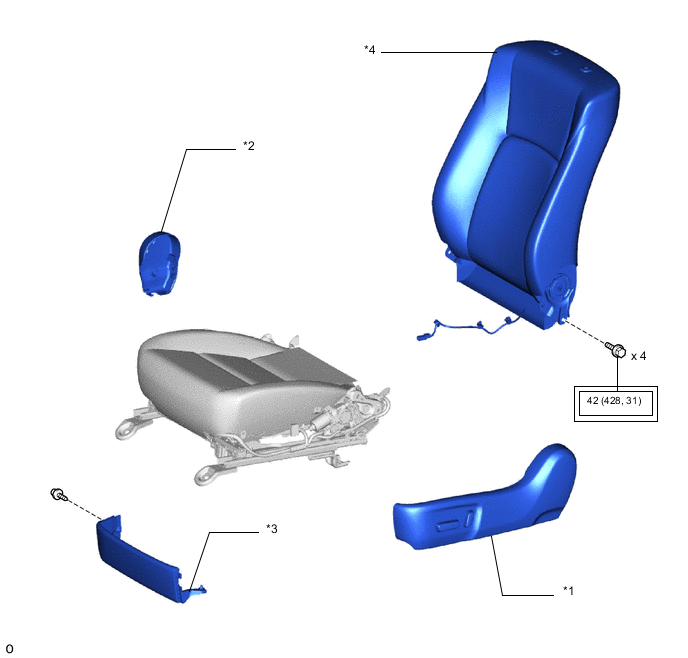

ILLUSTRATION
| *1 | FRONT SEAT CUSHION SHIELD LH | *2 | FRONT SEAT INNER CUSHION SHIELD LH |
| *3 | FRONT SEAT INNER NO. 1 CUSHION SHIELD LH | *4 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY LH |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

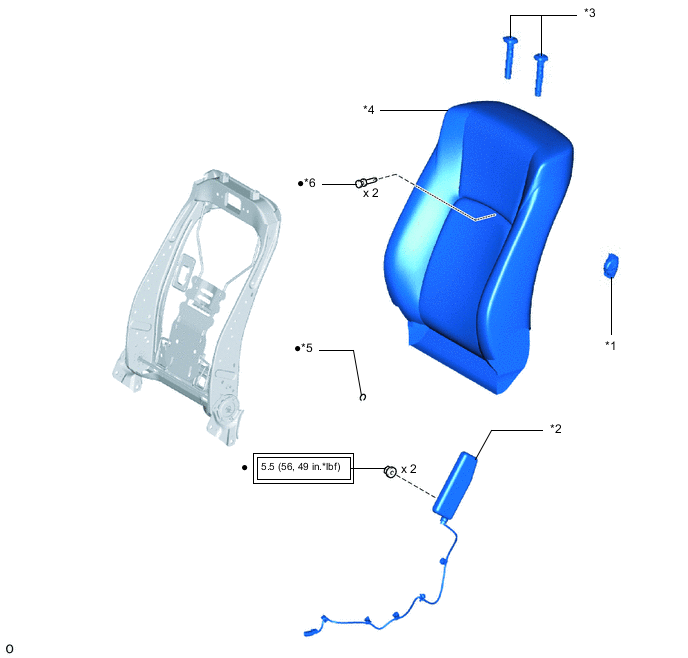

ILLUSTRATION
| *1 | FRONT NO. 1 SEATBACK HOOK | *2 | FRONT SEAT AIRBAG ASSEMBLY LH |
| *3 | FRONT SEAT HEADREST SUPPORT | *4 | SEATBACK COVER WITH PAD |
| *5 | HOG RING | *6 | RIVET |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
