FRONT SEAT SIDE AIRBAG ASSEMBLY(for Manual Seat) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:


  • B0025TC

    Wear protective gloves. Sharp areas on the parts may injure your hands.

  • There is risk of injury.

  • If the front seat side airbag was deployed, replace the front seat airbag assembly, separate type front seatback frame sub-assembly, separate type front seatback cover and separate type front seatback pad with the necessary parts in accordance with the extent of the collision damage.

  • Replace any other damaged parts as necessary.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    Click here

    B0069A2

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:


    • Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B00693Q

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE FRONT SEAT ASSEMBLY

    Click here

  4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH

    Click here

  5. REMOVE VERTICAL ADJUSTING HANDLE LH (w/ Vertical Adjuster)

    Click here

  6. REMOVE FRONT SEAT CUSHION SHIELD LH

    Click here

  7. REMOVE FRONT SEAT INNER CUSHION SHIELD LH

    Click here

  8. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY LH

    Click here

  9. REMOVE FRONT NO. 1 SEATBACK HOOK (w/ Seatback Hook)

    Click here

  10. REMOVE FRONT SEAT HEADREST SUPPORT (for Low-back Seat Type)

    Click here

  11. REMOVE SEATBACK COVER WITH PAD

    Click here

  12. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH

    CAUTION:


    • When storing the front seat airbag assembly LH, keep the airbag deployment side facing upward.

    • If the airbag deploys for any reason, it may cause a serious accident.

    B00295ZC01
    B00692L Deployment Side

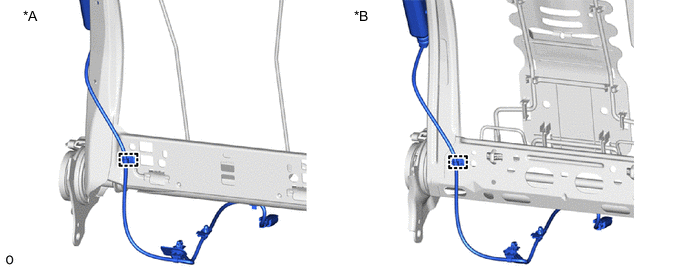

    1. Detach the wire harness clamp.

      Note

      Be careful not to damage the airbag wire harness.

      B0027SJC01
      *A for Hi-back Seat Type *B for Low-back Seat Type

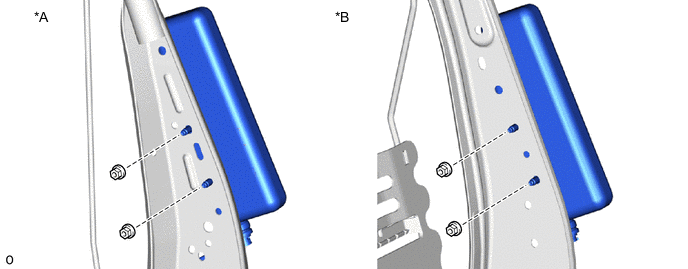

    2. Remove the 2 nuts and front seat airbag assembly LH.

      Note


      • The nuts must not be reused.

      • Make sure that the separate type front seatback frame sub-assembly is not deformed. If it is, replace it with a new one.

      B00291CC01
      *A for Hi-back Seat Type *B for Low-back Seat Type
