FRONT PASSENGER AIRBAG ASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the instrument panel passenger airbag assembly removal/installation are shown below.

Table 1. Necessary Procedures after parts removed / installed / replaced
Replacement Part or Procedure	Necessary Procedures	Effects / Inoperative when not Performed	Link
Disconnect cable from negative battery terminal	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)	Stop and start system	Click here
Disconnect cable from negative battery terminal	Memorize steering angle neutral point	Pre-collision system	Click here

Tip:

Use the same procedure for RHD and LHD vehicles.
The procedure listed below is for LHD vehicles.

Click here

PROCEDURE

Click here
PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

for Type A:

Click here

for Type B:

Click here

for Type C:

Click here

Note:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work.

Click here
Click here
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
- Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
- If the airbag deploys for any reason, it may cause a serious accident.
Note:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here
Click here
REMOVE UPPER INSTRUMENT PANEL

Click here

Click here

REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

CAUTION:

Deployment Side

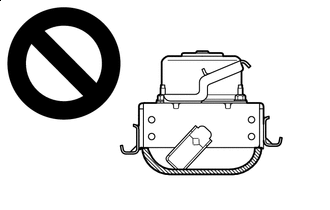

When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.
If the airbag deploys for any reason, it may cause a serious accident.

w/o Selectable Vent Hole:

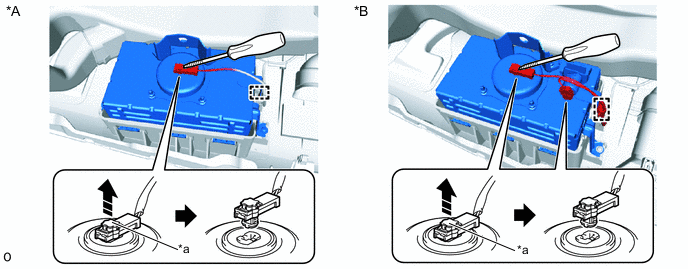

1. Using a screwdriver, release the connector lock and disconnect the airbag connector.

  Note:
  When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  Tip:
  Tape the screwdriver tip before use.
w/ Selectable Vent Hole:
1. Using a screwdriver, release the 2 connector locks and disconnect the 2 airbag connectors.

  Note:
  When disconnecting any airbag connector, take care not to damage the airbag wire harness.

  Tip:
  Tape the screwdriver tip before use.

*A	w/o Selectable Vent Hole	*B	w/ Selectable Vent Hole
*a	Connector Lock	-	-
	Protective Tape		Release in this Direction

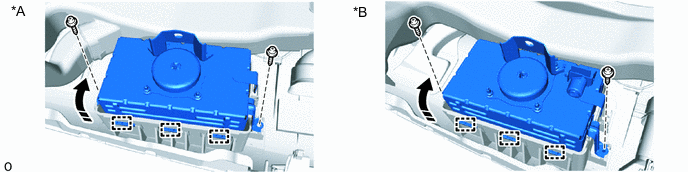

Detach the wire harness clamp.

Remove the 2 screws.
Insert moulding remover B into the side of the airbag door facing the rear of the vehicle and bend moulding remover B to detach the hook.

*A	w/o Selectable Vent Hole	*B	w/ Selectable Vent Hole
	Raise in this Direction	-	-

Raise the instrument panel passenger airbag assembly in the direction indicated by the arrow shown in the illustration to detach the hook on the side of the airbag door facing the front of the vehicle and remove the instrument panel passenger airbag assembly.

FRONT PASSENGER AIRBAG ASSEMBLY REMOVAL
