IGNITION KEY CYLINDER LIGHT INSPECTION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. INSPECT TRANSPONDER KEY COIL (IGNITION KEY CYLINDER LIGHT)

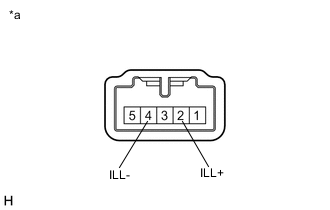

    1. B00251RC01
      *a

      Component without harness connected

      (Transponder Key Coil (Ignition Key Cylinder Light))

      Apply battery voltage to the connector and check the light illumination condition.

      OK
      Condition Specified Condition

      Battery positive (+) → Terminal 2 (ILL+)

      Battery negative (-) → Terminal 4 (ILL-)

      		 Illuminates

      If the result is not as specified, replace the transponder key coil (ignition key cylinder light).
