DOOR CONTROL RELAY(w/ Double Locking System) INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips

A bolt without a torque specification is shown in the standard bolt chart.

Click here

PROCEDURE


  1. INSTALL DOUBLE LOCK DOOR CONTROL RELAY ASSEMBLY

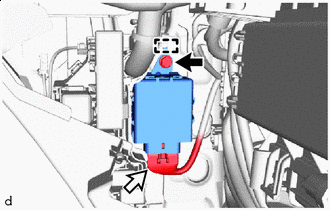

    1. A01SK98C02
      B0068HS Bolt
      B006964 Connector

      Connect the connector.

    2. Attach the guide to install the double lock door control relay assembly with the bolt.

      Torque:
      13 N*m  { 133 kgf*cm, 10 ft.*lbf }

  2. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY

    Click here

  3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY

    Click here
