REAR DOOR LOCK(for Double Cab) COMPONENTS

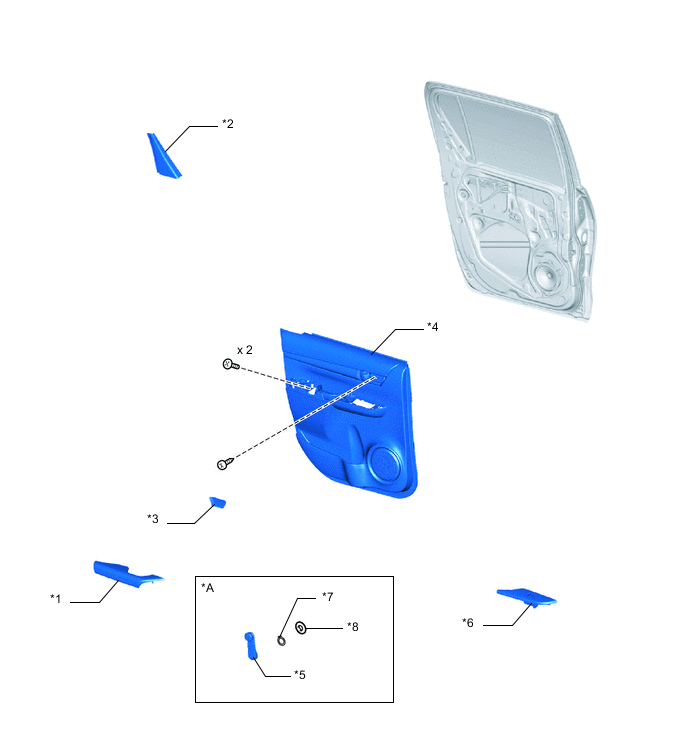

ILLUSTRATION
| *A | w/o Power Window | - | - |
| *1 | REAR ARMREST ASSEMBLY LH | *2 | REAR DOOR FRAME GARNISH LH |
| *3 | REAR DOOR INSIDE HANDLE BEZEL PLUG LH | *4 | REAR DOOR TRIM BOARD SUB-ASSEMBLY LH |
| *5 | REAR DOOR WINDOW REGULATOR HANDLE ASSEMBLY | *6 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL |
| *7 | SNAP RING | *8 | PLATE |

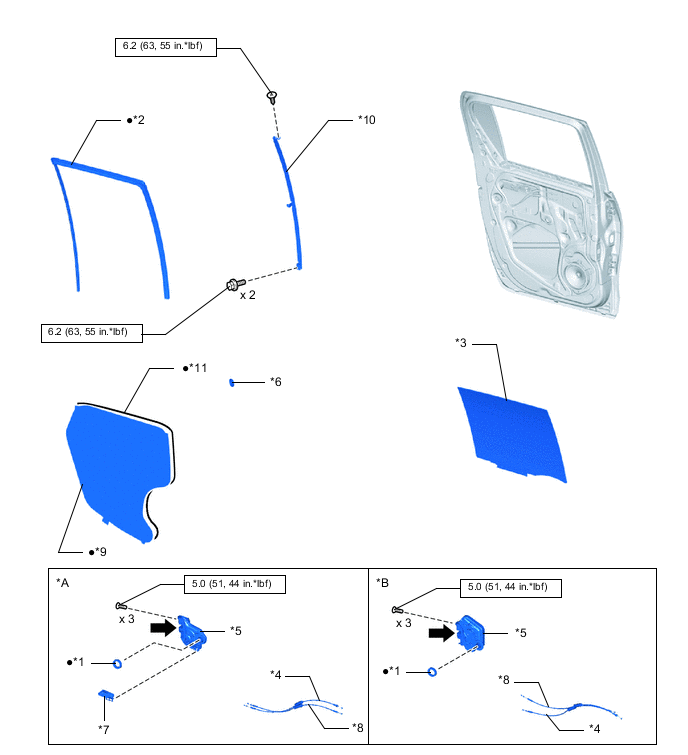

ILLUSTRATION
| *A | w/o Double Locking System | *B | w/ Double Locking System |
| *1 | DOOR LOCK WIRING HARNESS SEAL | *2 | REAR DOOR GLASS RUN LH |
| *3 | REAR DOOR GLASS SUB-ASSEMBLY LH | *4 | REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH |
| *5 | REAR DOOR LOCK ASSEMBLY LH | *6 | REAR DOOR LOCK CHILD PROTECTION COVER LH |
| *7 | REAR DOOR LOCK COVER SUB-ASSEMBLY LH | *8 | REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH |
| *9 | REAR DOOR SERVICE HOLE COVER LH | *10 | REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH |
| *11 | BUTYL TAPE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
MP grease | - | - |
