PROCEDURE
REMOVE MANUAL TRANSMISSION FILLER PLUG
Remove the manual transmission filler plug and gasket from the manual transmission case.
REMOVE DRAIN PLUG SUB-ASSEMBLY
Remove the drain plug sub-assembly and gasket from the manual transmission case.
REMOVE CLUTCH RELEASE FORK BOOT
REMOVE CLUTCH RELEASE BEARING ASSEMBLY
REMOVE RELEASE FORK SUPPORT
REMOVE CLUTCH HOUSING
Remove the 9 bolts.
Using a plastic-faced hammer, tap off the clutch housing from the manual transmission case.
REMOVE BACK-UP LIGHT SWITCH ASSEMBLY
REMOVE REVERSE RESTRICT PIN ASSEMBLY

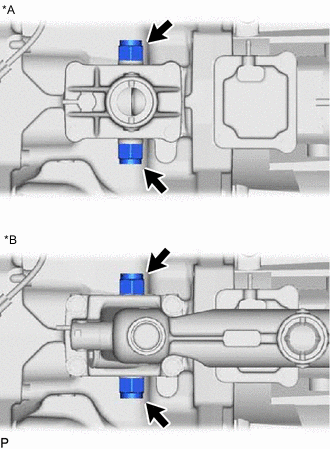

| *A | w/o Console Box Lid |
| *B | w/ Console Box Lid |
Remove the 2 reverse restrict pin assemblies from the transfer adapter sub-assembly.
REMOVE FLOOR SHIFT CONTROL SHIFT LEVER RETAINER SUB-ASSEMBLY
| *A | w/o Console Box Lid |
| *B | w/ Console Box Lid |
Remove the 4 bolts.
Remove the floor shift control shift lever retainer sub-assembly.
Remove the control shift lever retainer gasket.
REMOVE TRANSFER ADAPTER SUB-ASSEMBLY
Remove the 10 bolts and 2 wire harness brackets.
Using a brass bar and a hammer, tap out the transfer adapter sub-assembly from the manual transmission case.
REMOVE SHIFT AND SELECT LEVER
| *A | w/ Console Box Lid |
| *B | w/o Console Box Lid |
Remove the bolt from the shift lever housing.
| *A | w/ Console Box Lid |
| *B | w/o Console Box Lid |
Remove the shift and select lever and shift lever housing from the transfer adapter sub-assembly.
REMOVE TRANSFER OIL RECEIVER PIPE
Remove the transfer oil receiver pipe from the transfer adapter sub-assembly.
REMOVE REVERSE RESTRICT PIN
Using a T40 ''TORX'' socket wrench, remove the plug.
Using a 5 mm pin punch and hammer, tap out the reverse restrict slotted pin.
Remove the reverse restrict pin.
REMOVE TRANSFER ADAPTER OIL SEAL
REMOVE FRONT BEARING RETAINER

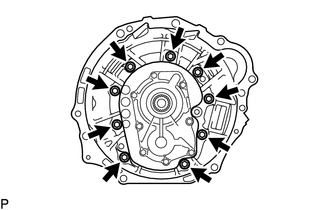

Remove the 8 bolts.
Using a brass bar and hammer, tap off the front bearing retainer from the manual transmission case.
REMOVE TRANSMISSION FRONT BEARING RETAINER OIL SEAL
REMOVE FRONT BEARING SHAFT SNAP RING

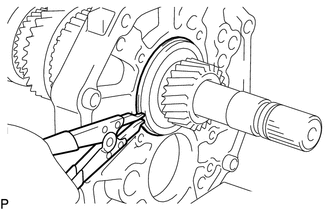

Using a snap ring expander, remove the front bearing shaft snap ring from the manual transmission case.
REMOVE COUNTER GEAR FRONT BEARING SNAP RING
Using a snap ring expander, remove the counter gear front bearing snap ring from the manual transmission case.
REMOVE MANUAL TRANSMISSION CASE

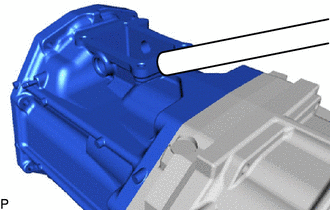

Using a brass bar and hammer, tap off the manual transmission case from the intermediate plate.
REMOVE TRANSMISSION MAGNET
Remove the transmission magnet from the intermediate plate.
SECURE INTERMEDIATE PLATE
Secure the intermediate plate in a vise between aluminum plates.
REMOVE SHIFT DETENT BALL PLUG
| *a | for Type A |
| *b | for Type B |
Remove the shift detent ball plug from the intermediate plate.
for Type A:
Using a T40 ''TORX'' socket wrench, remove the shift detent ball plug from the intermediate plate.
for Type B:
Using a 6 mm hexagon socket wrench, remove the shift detent ball plug from the intermediate plate.
Using a magnet hand, remove the shift detent ball compression spring and shift detent ball from the intermediate plate.
| *a | for Type A |
| *b | for Type B |
Remove the shift detent ball plug from the intermediate plate.
for Type A:
Using a T40 ''TORX'' socket wrench, remove the 2 shift detent ball plugs from the intermediate plate.
for Type B:
Using a 6 mm hexagon socket wrench, remove the 2 shift detent ball plugs from the intermediate plate.
Using a magnet hand, remove the 2 shift detent ball compression springs and 2 shift detent balls from the intermediate plate.
REMOVE NO. 2 GEAR SHIFT FORK SHAFT
Using 2 screwdrivers and a hammer, tap off the shift fork shaft snap ring from the No. 2 gear shift fork shaft.
Note
Use a cloth to prevent the shift fork shaft snap ring from flying off.
Remove the bolt from the No. 2 gear shift fork.
Remove the No. 2 gear shift fork shaft from the intermediate plate.
Remove the No. 2 gear shift fork from the No. 2 transmission hub sleeve.
Using a magnet hand, remove the No. 1 shift interlock roller and shift interlock pin from the intermediate plate.
REMOVE NO. 1 GEAR SHIFT FORK SHAFT
Using 2 screwdrivers and a hammer, tap off the shift fork shaft snap ring from the No. 1 gear shift fork shaft.
Note
Use a cloth to prevent the shift fork shaft snap ring from flying off.
Remove the bolt from the No. 1 gear shift fork.
Remove the No. 1 gear shift fork shaft from the intermediate plate.
Remove the No. 1 gear shift fork from the reverse gear.
Using a magnet hand, remove the No. 1 shift interlock roller from the intermediate plate.
REMOVE NO. 3 GEAR SHIFT FORK SHAFT
Using a 5 mm pin punch and hammer, tap out the shift fork set slotted spring pin from the No. 3 gear shift fork shaft.
Using 2 screwdrivers and a hammer, tap off the shift fork shaft snap ring from the No. 3 gear shift fork shaft.
Note
Use a cloth to prevent the shift fork shaft snap ring from flying off.
Using a magnet hand, remove the No. 1 shift interlock roller from the reverse shift fork.
Remove the No. 3 gear shift fork and No. 3 gear shift fork shaft from the intermediate plate.
REMOVE REVERSE SHIFT FORK
Remove the reverse shift fork from the reverse shift arm.
REMOVE REVERSE SHIFT ARM BRACKET
Remove the torsion spring from the reverse shift arm bracket.
Remove the 2 bolts and reverse shift arm bracket from the intermediate plate.
Using a screwdriver, remove the snap ring from the reverse shift arm bracket.
Remove the reverse shift arm from the reverse shift arm bracket.
REMOVE OUTPUT SHAFT REAR BEARING
Using 2 screwdrivers and a hammer, tap off the shaft snap ring from the output shaft.

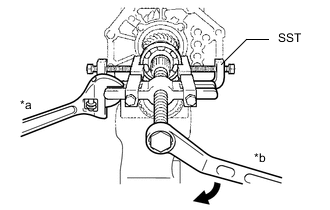

| *a | Hold |
| *b | Turn |

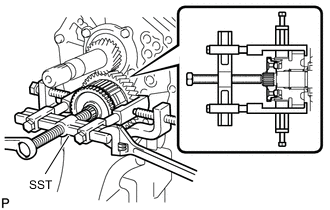

Using SST, remove the output shaft rear bearing and output shaft spacer from the output shaft.
INSPECT COUNTERSHAFT 5TH GEAR THRUST CLEARANCE
INSPECT COUNTERSHAFT 5TH GEAR RADIAL CLEARANCE
REMOVE COUNTER SHAFT REAR SNAP RING

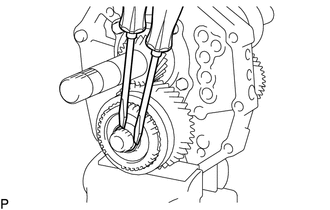

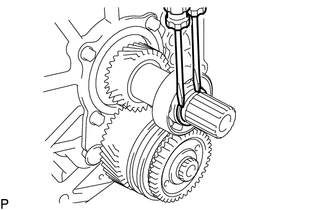

Using 2 screwdrivers and a hammer, tap off the counter shaft rear snap ring from the countershaft 5th gear.
REMOVE NO. 3 TRANSMISSION HUB SLEEVE

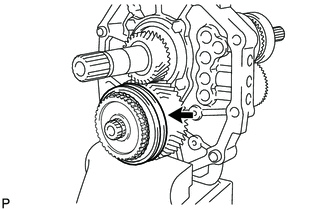

Remove the No. 3 transmission hub sleeve from the countershaft 5th gear.
REMOVE COUNTERSHAFT 5TH GEAR
Using SST, remove the countershaft 5th gear together with the 2 No. 3 synchromesh shifting keys, No. 3 synchromesh shifting key spring, No. 3 synchronizer ring and No. 5 gear spline piece from the counter gear.
REMOVE NO. 5 GEAR SPLINE PIECE

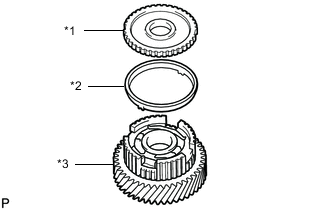

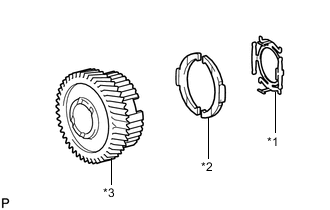

| *1 | No. 5 Gear Spline Piece |
| *2 | No. 3 Synchronizer Ring |
| *3 | Countershaft 5th Gear |
Remove the No. 5 gear spline piece from the countershaft 5th gear.
REMOVE NO. 3 SYNCHRONIZER RING
Remove the No. 3 synchronizer ring from the countershaft 5th gear.
REMOVE COUNTER 5TH GEAR BEARING
Remove the counter 5th gear bearing from the countershaft 5th gear.
REMOVE NO. 3 SYNCHROMESH SHIFTING KEY
Using a snap ring expander, remove the shaft snap ring.
| *1 | No. 3 Synchromesh Shifting Key Spring |
| *2 | No. 3 Synchromesh Shifting Key |
| *3 | Countershaft 5th Gear |
Remove the No. 3 synchromesh shifting key spring and 2 No. 3 synchromesh shifting keys from the countershaft 5th gear.
REMOVE 5TH GEAR THRUST WASHER
Remove the 5th gear thrust washer from the counter gear.
REMOVE 5TH GEAR THRUST WASHER PIN
Remove the 5th gear thrust washer pin from the counter gear.
REMOVE OUTPUT SHAFT REAR BEARING RETAINER
Remove the 4 bolts and output shaft rear bearing retainer from the intermediate plate.
REMOVE REVERSE IDLER GEAR SUB-ASSEMBLY
Pull out the reverse idler gear shaft and reverse idler gear sub-assembly from the intermediate plate.
REMOVE COUNTER SHAFT REAR BEARING
Using a snap ring expander, remove the snap ring.

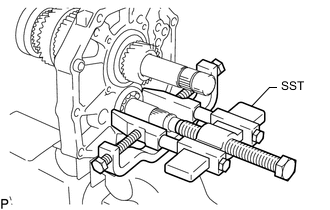

Using SST, remove the counter shaft rear bearing from the intermediate plate.
Tech Tips
Remove the counter shaft rear bearing while tapping the tip of the counter gear so that the counter gear does not hit the side wall of the output shaft gear by being pushed forward.
REMOVE COUNTER GEAR
Remove the counter gear from the intermediate plate.
REMOVE INPUT SHAFT
Remove the input shaft and No. 2 synchronizer ring from the output shaft.
Note
Do not drop the input shaft bearing and No. 2 synchronizer ring.
INSPECT NO. 2 SYNCHRONIZER RING
REMOVE OUTPUT SHAFT BEARING SHAFT SNAP RING
Using a snap ring expander, remove the output shaft bearing shaft snap ring from the output shaft.
REMOVE OUTPUT SHAFT

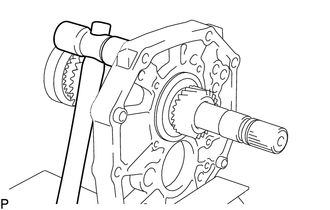

Using a plastic-faced hammer, remove the output shaft by tapping the intermediate plate.
REMOVE STRAIGHT PIN
Note
If a straight pin is deformed or its threads are damaged, replace it.
REMOVE RING PIN
Note
If a ring pin is deformed or its threads are damaged, replace it.
INSPECT NO. 3 SYNCHRONIZER RING
INSPECT NO. 3 TRANSMISSION HUB SLEEVE
INSPECT COUNTERSHAFT 5TH GEAR
INSPECT REVERSE IDLER GEAR SUB-ASSEMBLY
