FRONT BRAKE(for 16 inch Front Disc Brake 2WD) COMPONENTS

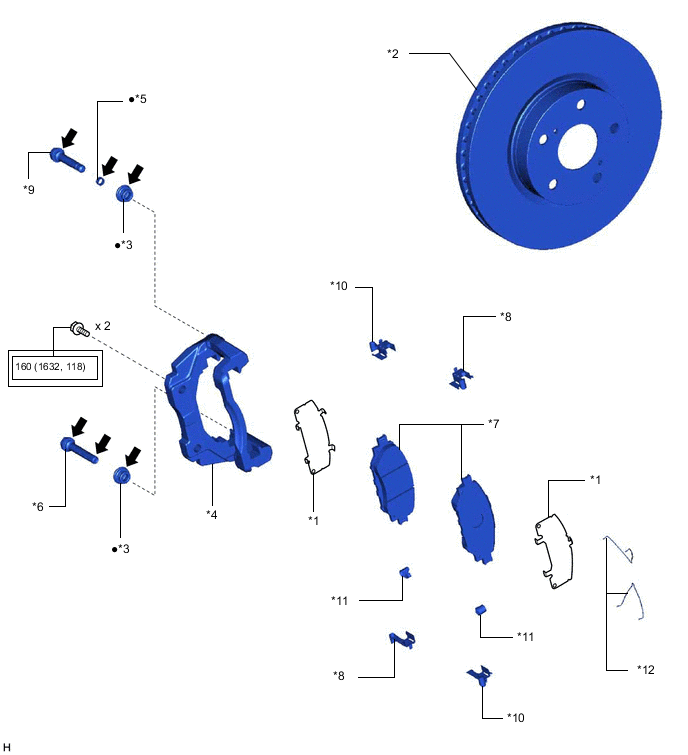

ILLUSTRATION
| *1 | NO. 1 FRONT ANTI-SQUEAL SHIM | *2 | FRONT DISC |
| *3 | FRONT DISC BRAKE BUSH DUST BOOT | *4 | FRONT DISC BRAKE CYLINDER MOUNTING LH |
| *5 | FRONT DISC BRAKE CYLINDER SLIDE BUSH | *6 | FRONT DISC BRAKE CYLINDER SLIDE PIN |
| *7 | FRONT DISC BRAKE PAD | *8 | NO. 1 PAD SUPPORT PLATE |
| *9 | NO. 2 FRONT DISC BRAKE CYLINDER SLIDE PIN | *10 | NO. 2 PAD SUPPORT PLATE |
| *11 | PAD WEAR INDICATOR PLATE | *12 | ANTI-SQUEAL SPRING |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
 |
Lithium soap base glycol grease | - | - |

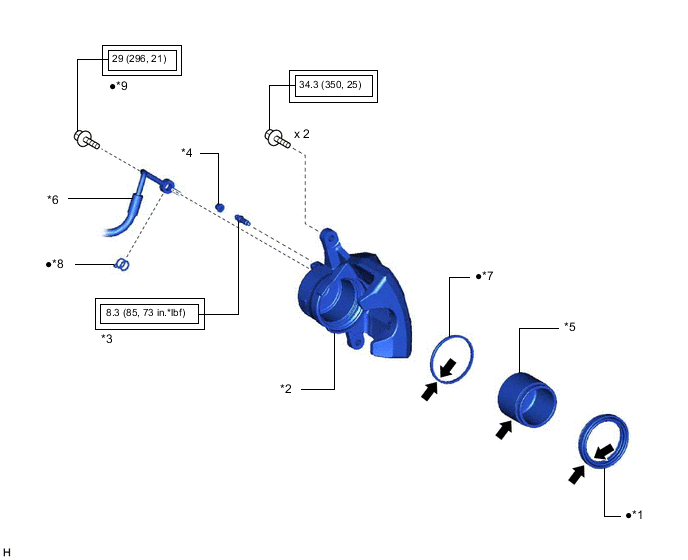

ILLUSTRATION
| *1 | CYLINDER BOOT | *2 | DISC BRAKE CYLINDER ASSEMBLY LH |
| *3 | FRONT DISC BRAKE BLEEDER PLUG | *4 | FRONT DISC BRAKE BLEEDER PLUG CAP |
| *5 | FRONT DISC BRAKE PISTON | *6 | FRONT FLEXIBLE HOSE |
| *7 | PISTON SEAL | *8 | GASKET |
| *9 | UNION BOLT | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| |
Lithium soap base glycol grease | - | - |
