VALVE BODY ASSEMBLY INSPECTION

PROCEDURE


  1. INSPECT SHIFT SOLENOID VALVE SL1


    1. A01SK10C60
      *a

      Component without harness connected

      (Shift Solenoid Valve SL1)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the shift solenoid valve SL1.

    2. Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

      OK
      Measurement Condition Specified Condition

      • Battery positive (+) with a 21 W bulb → Terminal 1

      • Battery negative (-) → Terminal 2

      		 Valve moves and makes an operating noise

      If the operation cannot be done as specified, replace the shift solenoid valve SLT.

  2. INSPECT SHIFT SOLENOID VALVE SL2

    Tech Tips

    Refer to Inspect Shift Solenoid Valve SL1.

  3. INSPECT SHIFT SOLENOID VALVE SL3

    Tech Tips

    Refer to Inspect Shift Solenoid Valve SL1.

  4. INSPECT SHIFT SOLENOID VALVE SL4

    Tech Tips

    Refer to Inspect Shift Solenoid Valve SL1.

  5. INSPECT SHIFT SOLENOID VALVE SLU

    Tech Tips

    Refer to Inspect Shift Solenoid Valve SL1.

  6. INSPECT SHIFT SOLENOID VALVE SLT

    Tech Tips

    Refer to Inspect Shift Solenoid Valve SL1.

  7. INSPECT SHIFT SOLENOID VALVE SL

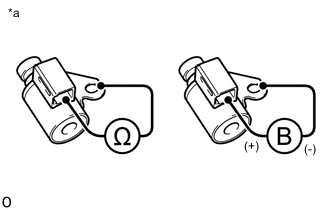

    1. A01SHHMC02
      *a

      Component without harness connected

      (Shift Solenoid Valve SL)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      Shift solenoid valve SL connector terminal - Shift solenoid valve SL body 20°C (68°F) 11 to 15 Ω

      If the value is not as specified, replace the shift solenoid valve SL.

    2. Apply 12 V battery voltage to the shift solenoid valve and check that the valve moves and makes an operating noise.

      OK
      Measurement Condition Specified Condition

      • Battery positive (+) → Shift solenoid valve SL connector

      • Battery negative (-) → Shift solenoid valve SL body

      		 Valve moves and makes an operating noise

  8. INSPECT ELECTROMAGNETIC OIL PUMP (w/ Stop And Start System)

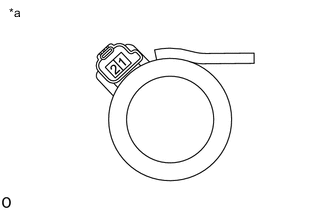

    1. B0025AQC02
      *a

      Component without harness connected

      (Electromagnetic Oil Pump)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - 2 20°C (68°F) 5.0 to 5.6 Ω

      If the value is not as specified, replace the electromagnetic oil pump.
