RADIATOR COMPONENTS

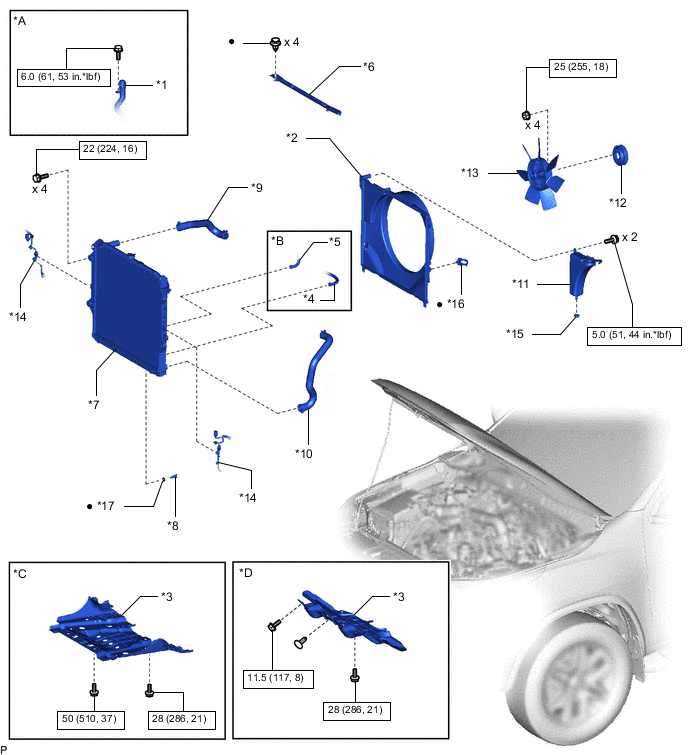

ILLUSTRATION
| *A | w/ Secondary Air Injection System | *B | for Automatic Transmission |
| *C | for 2WD | *D | for 4WD |
| *1 | AIR PUMP INLET | *2 | FAN SHROUD |
| *3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *4 | NO. 1 OIL COOLER INLET HOSE |
| *5 | NO. 1 OIL COOLER OUTLET HOSE | *6 | NO. 1 RADIATOR AIR GUIDE |
| *7 | RADIATOR ASSEMBLY | *8 | RADIATOR DRAIN COCK PLUG |
| *9 | RADIATOR HOSE INLET | *10 | RADIATOR HOSE OUTLET |
| *11 | RADIATOR RESERVOIR | *12 | FAN PULLEY |
| *13 | FLUID COUPLING FAN | *14 | WIRE HARNESS |
| *15 | GROMMET | *16 | CLAMP |
| *17 | O-RING | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
