THERMOSTAT COMPONENTS

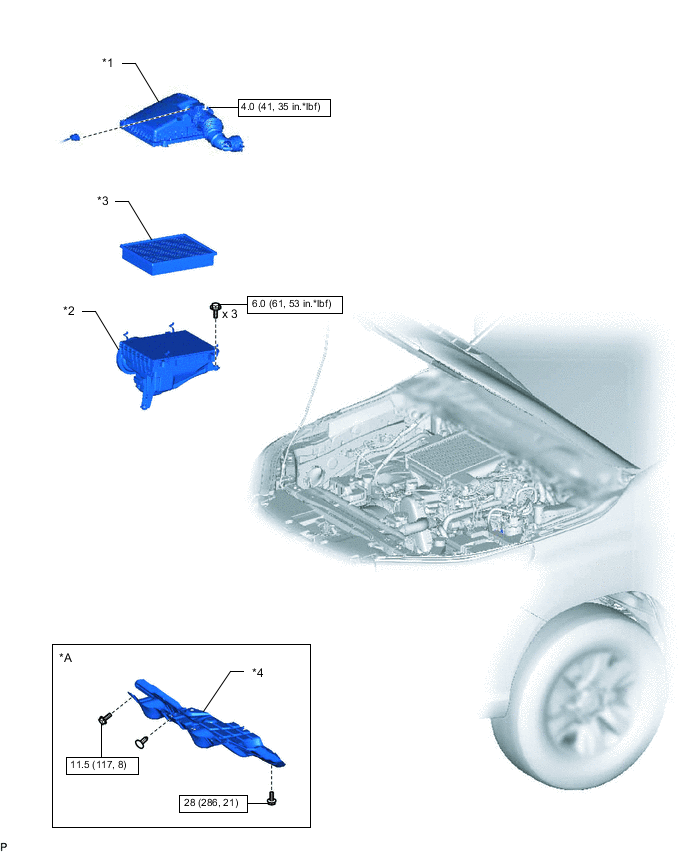

ILLUSTRATION
| *A | for 4WD and Pre-Runner | - | - |
| *1 | AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | NO. 1 ENGINE UNDER COVER ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

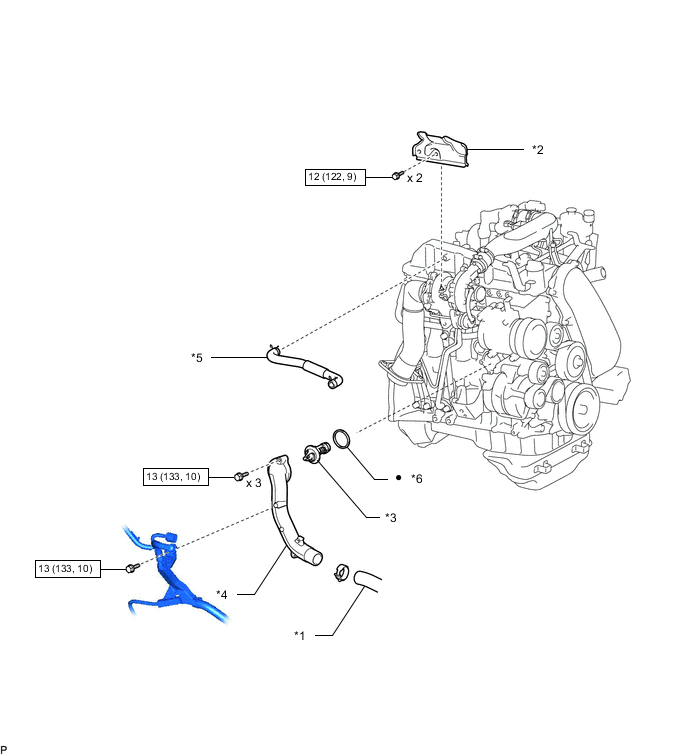

ILLUSTRATION
| *1 | NO. 2 RADIATOR HOSE | *2 | PCV HOSE HEAT INSULATOR |
| *3 | THERMOSTAT | *4 | WATER INLET |
| *5 | PCV HOSE | *6 | GASKET |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
