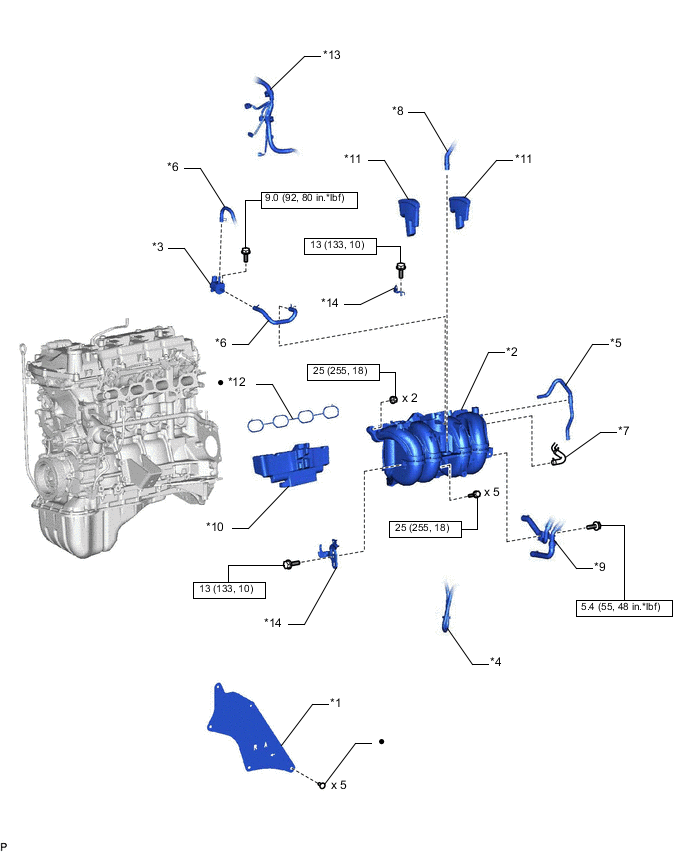

INTAKE MANIFOLD COMPONENTS
ILLUSTRATION
| *1 | FRONT FENDER SEAL LH | *2 | INTAKE MANIFOLD |
| *3 | PURGE VSV | *4 | NO. 1 FUEL HOSE |
| *5 | NO. 2 WATER BY-PASS HOSE | *6 | PURGE LINE HOSE |
| *7 | NO. 3 PCV HOSE | *8 | UNION TO CONNECTOR TUBE HOSE |
| *9 | HEATER WATER PIPE SUB-ASSEMBLY | *10 | INTAKE MANIFOLD INSULATOR |
| *11 | NO. 2 INTAE MANIFOLD INSULATOR | *12 | GASKET |
| *13 | WIRE HARNESS | *14 | WIRE HARNESS CLAMP BRACKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
