FUEL SENDER GAUGE ASSEMBLY REMOVAL

PROCEDURE


  1. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

    Click here

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

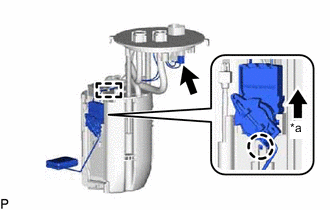

    1. A01WALSC01
      *a Slide

      Disconnect the fuel sender gauge assembly connector and wire harness.

    2. Detach the claw and slide the fuel sender gauge assembly upward to remove it.
