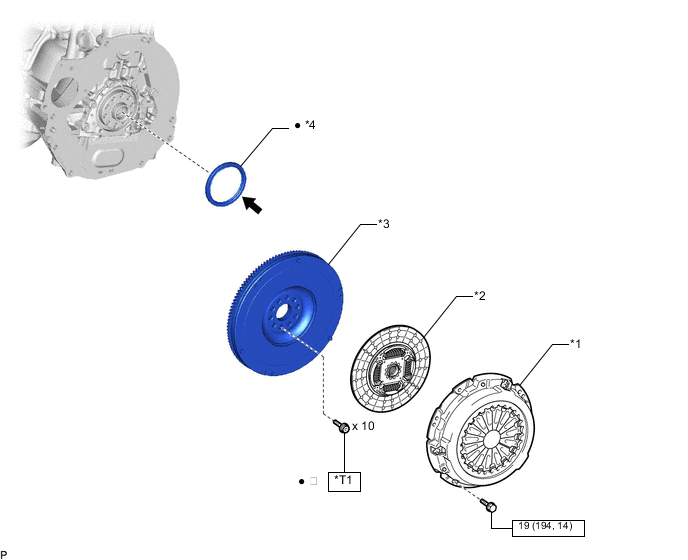

REAR CRANKSHAFT OIL SEAL COMPONENTS

ILLUSTRATION

A01L8EEC01
*1 CLUTCH COVER ASSEMBLY *2 CLUTCH DISC ASSEMBLY
*3 FLYWHEEL SUB-ASSEMBLY *4 REAR ENGINE OIL SEAL
B0068CQ N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
B0068HS MP grease ★ Precoated part
*T1

1st: 26.5 N*m (270 kgf*cm, 20 ft.*lbf)

2nd: Turn 90°

 - -
