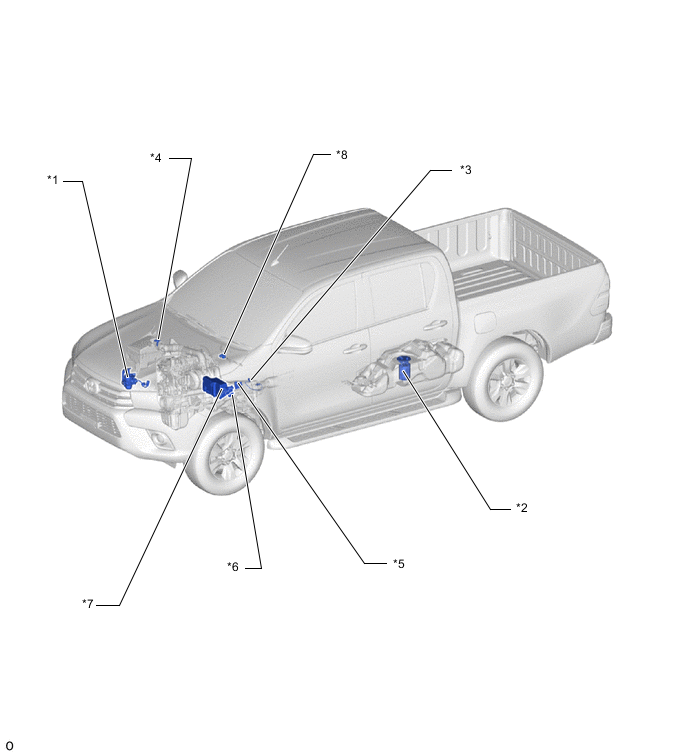

SFI SYSTEM PARTS LOCATION
ILLUSTRATION
| *1 | AIR PUMP ASSEMBLY | *2 | FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY |
| *3 | HEATED OXYGEN SENSOR | *4 | MASS AIR FLOW METER SUB-ASSEMBLY |
| *5 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY(for Automatic Transmission Models) | *6 | AIR INJECTION CONTROL DRIVER |
| *7 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - A/F HTR RELAY - INJ RELAY - ST NO. 1 RELAY |
8 | NO. 1 VACUUM SWITCHING VALVEASSEMBLY (EJECTOR VSV) |

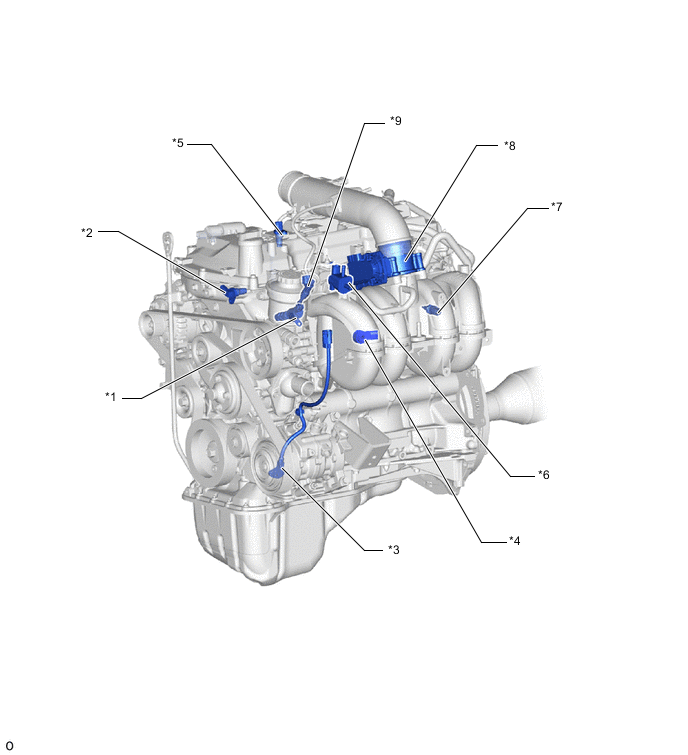

ILLUSTRATION
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side) | *2 | CAMSHAFT POSITION SENSOR (for Intake Side) |
| *3 | CRANKSHAFT POSITION SENSOR | *4 | KNOCK SENSOR |
| *5 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | *6 | PURGE VSV |
| *7 | ENGINE COOLANT TEMPERATURE SENSOR | *8 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *9 | FUEL INJECTOR ASSEMBLY | - | - |

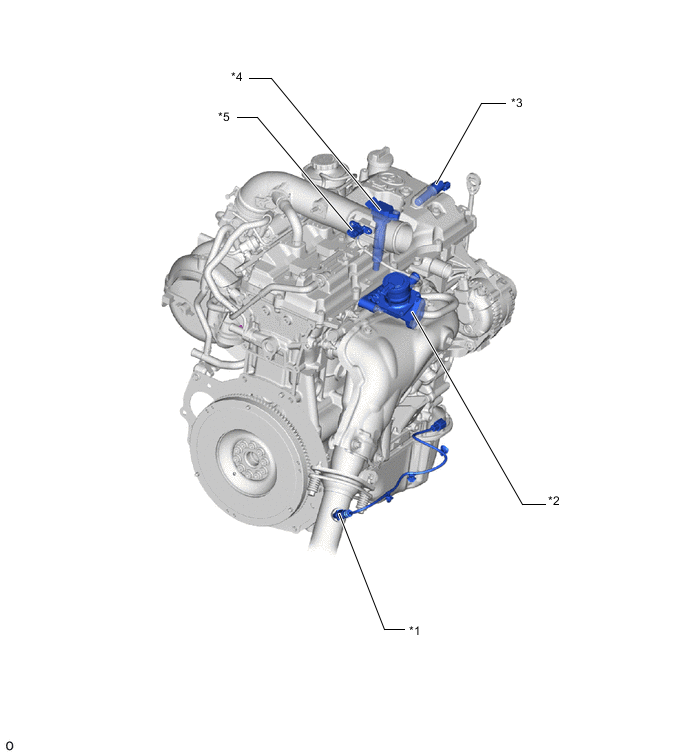

ILLUSTRATION
| *1 | AIR FUEL RATIO SENSOR | *2 | AIR SWITCHING VALVE ASSEMBLY |
| *3 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side) | *4 | IGNITION COIL ASSEMBLY |
| *5 | AIR PRESSURE SENSOR | - | - |
ILLUSTRATION
-

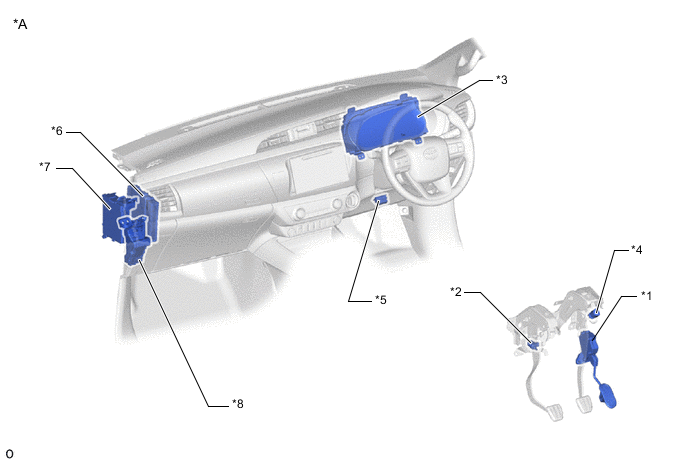

| *A | for RHD | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | CLUTCH START SWITCH ASSEMBLY (for Manual Transmission Models) |
| *3 | COMBINATION METER ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | DLC3 | *6 | ECM |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY - C/OPN NO. 1 RELAY |
*8 | INSTRUMENT PANEL RELAY BLOCK NO. 4 - IG2 RELAY |
ILLUSTRATION

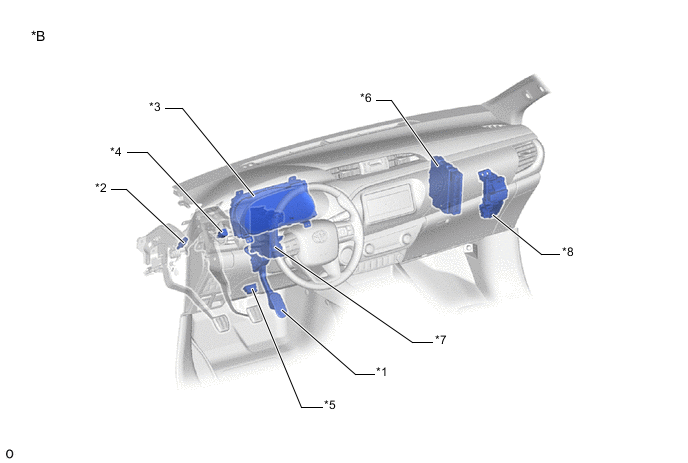

| *B | for LHD | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | CLUTCH START SWITCH ASSEMBLY (for Manual Transmission Models) |
| *3 | COMBINATION METER ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | DLC3 | *6 | ECM |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - EFI-MAIN NO. 1 RELAY - C/OPN NO. 1 RELAY |
*8 | INSTRUMENT PANEL RELAY BLOCK NO. 4 - IG2 RELAY |
