REAR NO. 2 SEAT OUTER BELT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedures listed below are for RHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the RH side.

PROCEDURE


  1. REMOVE REAR NO. 2 SEAT ASSEMBLY LH

    Click here

  2. REMOVE REAR DOOR SCUFF PLATE RH

    Click here

  3. REMOVE BACK DOOR SCUFF PLATE

    Click here

  4. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER

    Click here

  5. REMOVE REAR NO. 2 SEAT OUTER LAP BELT ANCHOR COVER

    Click here

  6. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH (for Floor Anchor)


    1. B003PHH

      Remove the bolt and disconnect the floor anchor of the rear No. 1 seat outer belt assembly RH.

  7. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH (for Floor Anchor)


    1. B003L9H

      Remove the bolt and disconnect the floor anchor of the rear No. 2 seat outer belt assembly RH.

  8. REMOVE QUARTER INSIDE TRIM BOARD RH

    Click here

  9. REMOVE SEAT BELT ANCHOR COVER CAP

    Click here

  10. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH


    1. B003NDT

      Remove the bolt and disconnect the rear No. 2 seat outer belt assembly RH.

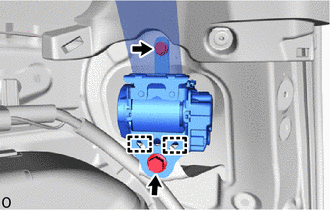

    2. B003MC6

      Remove the 2 bolts.

    3. Detach the 2 guides and remove the rear No. 2 seat outer belt assembly RH.
