FRONT SEAT ASSEMBLY(for Manual Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:


  • B003L4P

    Wear protective gloves. Sharp areas on the parts may injure your hands.

  • There is risk of injury.

  • If the front seat side airbag was deployed, replace the front seat airbag assembly, separate type front seatback frame sub-assembly, separate type front seatback cover and separate type front seatback pad with the necessary parts in accordance with the extent of the collision damage.

  • Replace any other damaged parts as necessary.

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the RH side.

PROCEDURE


  1. REMOVE FRONT SEAT HEADREST ASSEMBLY


    1. Remove the front seat headrest assembly.

  2. REMOVE SEAT ADJUSTER COVER CAP RH


    1. B003MVQC01
      B003OFB Remove in this Direction

      Remove the 2 seat adjuster cover caps RH in the removal direction shown in the illustration.

  3. REMOVE RECLINING ADJUSTER RELEASE HANDLE RH


    1. B003QTOC01
      B003OFB Remove in this Direction
      B003KT0 Protective Tape

      With the reclining adjuster release handle RH pulled up.

    2. Using a thin-bladed screwdriver with its tip wrapped in protective tape, detach the claw and remove the reclining adjuster release handle RH while moving it in removal direction shown in the illustration.

  4. REMOVE VERTICAL ADJUSTING HANDLE RH


    1. B003NTD

      Remove the screw.

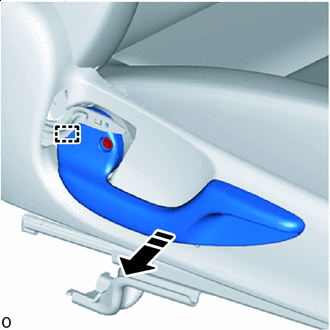

    2. B003PUCC01
      B003OFB Remove in this Direction

      Detach the guide, and then pull out removal direction shown in the illustration to remove the vertical adjusting handle RH.

  5. REMOVE FRONT SEAT CUSHION SHIELD RH


    1. B003KELC01
      B003OFB Remove in this Direction

      Using moulding remover A, lift in direction indicated by the arrow shown in the illustration and push down in the removal direction to detach the claw.

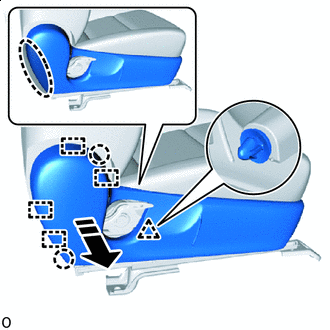

    2. B003J3WC01
      B003QBX Place Hand Here
      B003OFB Remove in this Direction

      Place your hand at the position shown in the illustration and pull out removal direction to detach the guide, claw and clip.

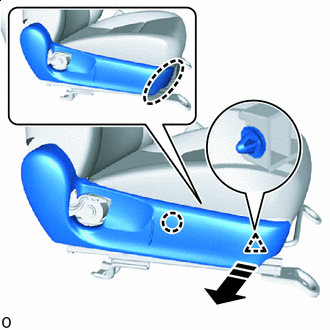

    3. B003K1OC01
      B003QBX Place Hand Here
      B003OFB Remove in this Direction

      Place your hand at the position shown in the illustration and pull out removal direction to detach the claw and clip to remove the front seat cushion shield RH.

  6. REMOVE FRONT SEAT INNER CUSHION SHIELD RH


    1. B003RI0C01
      B003OFB Remove in this Direction

      Using moulding remover A, lift in direction indicated by the arrow shown in the illustration and push down in removal direction to detach the claw.

    2. B003P7EC01
      B003QBX Place Hand Here
      B003OFB Remove in this Direction

      Place your hand at the position shown in the illustration and pull out removal direction to detach the claw and guide to remove the front seat inner cushion shield RH.

  7. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH

    Click here

  8. REMOVE FRONT SEATBACK FRAME SUB-ASSEMBLY RH


    1. B003NOP

      Remove the band in the position shown in the illustration.

    2. B003Q42C01
      *1 Wire Harness Clamp
      *2 Connector Clamp

      w/ Front Seat Side Airbag:


      1. Detach the wire harness clamp and connector clamp.

    3. B003LL7C01
      *A LH Side
      *B RH Side
      *1 Separate Type Front Seat Cushion Cover

      Detach the hook.

    4. B003NICC01
      *A LH Side
      *B RH Side

      Remove the 4 bolts and front seatback frame sub-assembly RH.

  9. REMOVE RECLINING ADJUSTER INSIDE COVER RH


    1. B003JSVC01
      B003OFB Remove in this Direction (1)
      B003QYY Remove in this Direction (2)

      Rotate the part in removal direction (1) shown in the illustration to detach the guide.

    2. Pull up in removal direction (2) shown in the illustration to remove the reclining adjuster inside cover RH.

  10. REMOVE RECLINING ADJUSTER INSIDE COVER LH

    Tech Tips

    Use the same procedure as for the RH side.

  11. REMOVE FRONT NO. 1 SEATBACK HOOK (w/ Front No. 1 Seatback Hook)


    1. B003NUL

      Using moulding remover A, lift in the direction indicated by the arrow shown in the illustration to detach the claw and remove the front No. 1 seatback hook.

  12. REMOVE FRONT SEAT HEADREST SUPPORT


    1. B003QY6

      Remove the 5 hog rings.

    2. B003OOGC01
      B003OFB Remove in this Direction

      Open the fasteners as shown in the illustration.

    3. B003M0YC01
      B003OFB Remove in this Direction

      Pull up removal direction shown in the illustration to detach the guide to the 2 straps

    4. B003R5NC01
      B003OFB Remove in this Direction

      Detach the claw and remove the 2 front seat headrest supports.

  13. REMOVE SEATBACK COVER WITH PAD


    1. w/ Front Seat Side Airbag:


      1. Place your hand at the position shown in the illustration and pull out the removal direction to detach the J hook B.

        B003NPOC01
        *1 J Hook A *2 J Hook B
        *3 J Hook C - -
        B003QBX Place Hand Here B003OFB Remove in this Direction

      2. Remove the rivet to J hook B.

        B003JP9C01
        *A for LH seat *B for RH seat
        *1 J Hook A *2 J Hook B

        Tech Tips


        • Only remove one of the rivets.


        • For LH seats, remove the top rivet.


        • For RH seats, remove the bottom rivet.

      3. B003KZ9C01
        *1 J Hook B (J Hook A and J Hook B)
        *2 J Hook C
        B003OFB Remove in this Direction

        Pull out removal direction shown in the illustration to detach the J hook C to J hook B (J hook A and J hook B).

      4. B003P55C01
        *1 J Hook A
        *2 J Hook B
        B003OFB Remove in this Direction

        Pull out removal direction shown in the illustration to detach the J hook A to J hook B.

    2. B003RVDC01
      B003OFB Remove in this Direction

      Pull out removal direction shown in the illustration to remove the seatback cover with pad.

  14. REMOVE SEPARATE TYPE FRONT SEATBACK COVER


    1. B003QJU

      Remove the 6 hog rings.

  15. REMOVE SEAT COVER WIRE


    1. B003L87

      Remove the seat cover wire.

  16. REMOVE FRONT SEAT AIRBAG ASSEMBLY RH (w/ Front Seat Side Airbag)

    Click here

  17. REMOVE FRONT NO. 2 SEATBACK HOOK


    1. B003JYRC01
      B003OFB Remove in this Direction

      Pull down removal direction shown in the illustration to detach the claw and remove the front No. 2 seatback hook.

  18. REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY RH


    1. B003KMQ

      Detach the claw and remove the 2 front seatback edge protectors.

    2. B003OGBC01
      B003OFB Remove in this Direction (1)
      B003QYY Remove in this Direction (2)

      Pull out removal direction (1) shown in the illustration to separate the front seat spring sub-assembly RH.

    3. Pull down removal direction (2) shown in the illustration to remove the front seat spring sub-assembly RH.

    4. Remove the 2 front No. 2 seatback hooks.

  19. REMOVE FRONT SEATBACK EDGE PROTECTOR


    1. B003KRYC01
      B003KT0 Protective Tape

      Using a thin-bladed screwdriver with its tip wrapped in protective tape, detach the claw and remove the 2 front seatback edge protectors.

  20. REMOVE SEAT CUSHION COVER WITH PAD


    1. While sliding the part in the direction indicated by the arrow shown in the illustration, detach the J hook and remove the seat cushion cover with pad.

      B003KY4

  21. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER


    1. B003JZF

      Remove the 2 hog rings and disconnect the 2 straps of the separate type front seat cushion cover from the separate type front seat cushion pad.

    2. B003ONP

      Remove the 18 hog rings and separate type front seat cushion cover.

  22. REMOVE SEAT COVER WIRE


    1. B003LVT

      Remove the seat cover wire.

  23. REMOVE FRONT SEAT LOWER CUSHION SHIELD RH


    1. B003OY2C01
      B003OFB Remove in this Direction

      Remove the screw.

    2. Pull out removal direction shown in the illustration to detach the guide.

    3. B003QYVC01
      B003OFB Remove in this Direction (1)
      B003QYY Remove in this Direction (2)

      Lift up removal direction (1) shown in the illustration to detach the clip.

    4. Pull out removal direction (2) shown in the illustration to remove the front seat cushion lower shield RH.

  24. REMOVE FRONT SEAT LOWER CUSHION SHIELD LH

    Tech Tips

    Use the same procedure as for the RH side.

  25. REMOVE FRONT SEAT CUSHION EDGE PROTECTOR RH


    1. B003L5YC01
      B003OFB Remove in this Direction (1)
      B003QYY Remove in this Direction (2)

      Remove the screw.

    2. While rotating the part in removal direction (1) shown in the illustration, detach the claw.

    3. Pull out removal direction (2) shown in the illustration to detach the guide and remove the front seat cushion edge protector RH.

  26. REMOVE FRONT SEAT CUSHION EDGE PROTECTOR LH

    Tech Tips

    Use the same procedure as for the RH side.

  27. REMOVE FRONT SEAT CUSHION SPRING SUB-ASSEMBLY RH


    1. B003P71C01
      B003OFB Remove in this Direction (1)
      B003QYY Remove in this Direction (2)

      Pull out removal direction (1) shown in the illustration to detach the hook.

    2. While rotating the part in removal direction (2) shown in the illustration, detach the hook and remove the front seat cushion spring sub-assembly RH.

  28. REMOVE SEAT TRACK HANDLE SUB-ASSEMBLY RH


    1. Detach the claw and remove the seat track handle sub-assembly RH.

      B003MH3
