FRONT SEAT ASSEMBLY(for Manual Seat) COMPONENTS
ILLUSTRATION
| *1 | FRONT SEAT ASSEMBLY RH | *2 | FRONT SEAT HEADREST ASSEMBLY |
| *3 | FRONT SEAT REAR INNER TRACK COVER RH | *4 | FRONT SEAT REAR OUTER TRACK COVER RH |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
Apply Silicon |

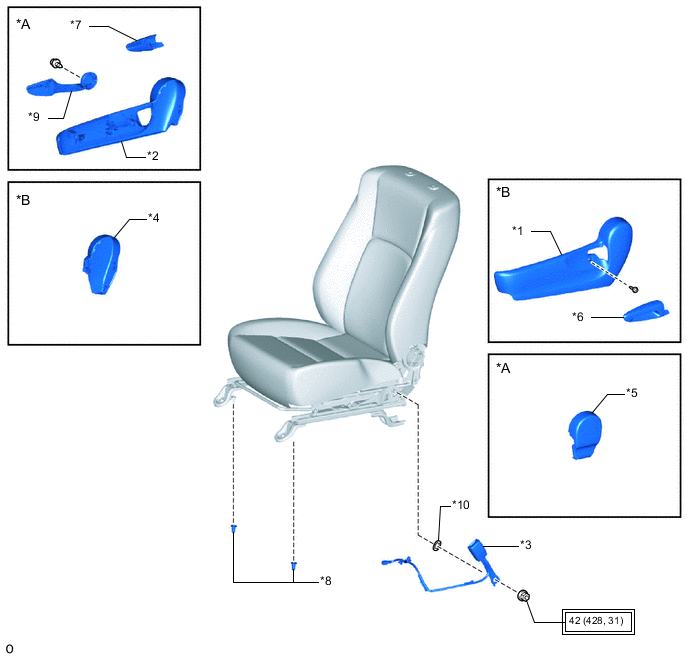

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT CUSHION SHIELD LH | *2 | FRONT SEAT CUSHION SHIELD RH |
| *3 | FRONT SEAT INNER BELT ASSEMBLY RH | *4 | FRONT SEAT INNER CUSHION SHIELD LH |
| *5 | FRONT SEAT INNER CUSHION SHIELD RH | *6 | RECLINING ADJUSTER RELEASE HANDLE LH |
| *7 | RECLINING ADJUSTER RELEASE HANDLE RH | *8 | SEAT ADJUSTER COVER CAP RH |
| *9 | VERTICAL ADJUSTING HANDLE RH | *10 | FRONT SEAT BELT ANCHOR PLATE |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

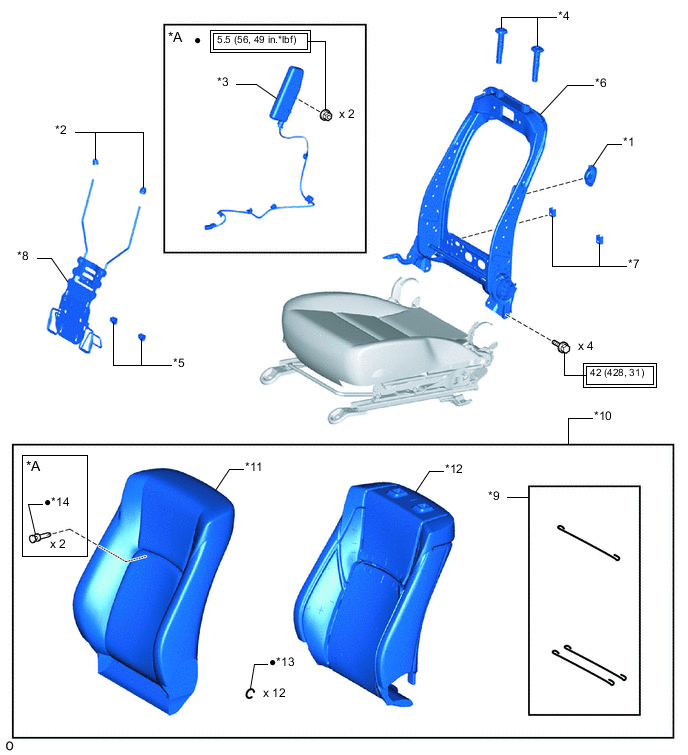

ILLUSTRATION
| *A | w/ Front Seat Side Airbag | - | - |
| *1 | FRONT NO. 1 SEATBACK HOOK | *2 | FRONT NO. 2 SEATBACK HOOK |
| *3 | FRONT SEAT AIRBAG ASSEMBLY RH | *4 | FRONT SEAT HEADREST SUPPORT |
| *5 | FRONT SEATBACK EDGE PROTECTOR | *6 | FRONT SEATBACK FRAME SUB-ASSEMBLY RH |
| *7 | FRONT SEATBACK HOOK | *8 | FRONT SEATBACK SPRING SUB-ASSEMBLY RH |
| *9 | SEAT COVER WIRE | *10 | SEATBACK COVER WITH PAD |
| *11 | SEPARATE TYPE FRONT SEATBACK COVER | *12 | SEPARATE TYPE FRONT SEATBACK PAD |
| *13 | HOG RING | *14 | RIVET |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |

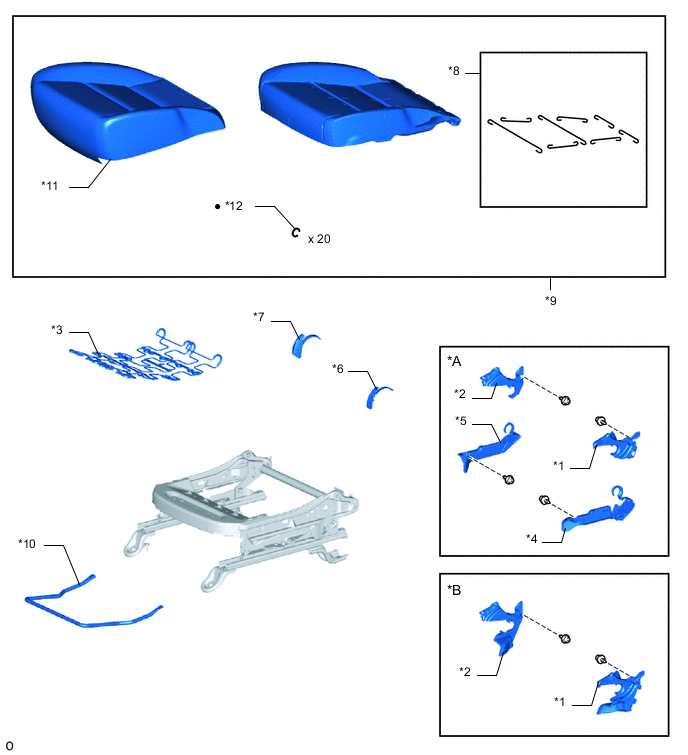

ILLUSTRATION
| *A | for Driver Side | *B | for Front Passenger Side |
| *1 | FRONT SEAT CUSHION EDGE PROTECTOR LH | *2 | FRONT SEAT CUSHION EDGE PROTECTOR RH |
| *3 | FRONT SEAT CUSHION SPRING SUB-ASSEMBLY RH | *4 | FRONT SEAT LOWER CUSHION SHIELD LH |
| *5 | FRONT SEAT LOWER CUSHION SHIELD RH | *6 | RECLINING ADJUSTER INSIDE COVER LH |
| *7 | RECLINING ADJUSTER INSIDE COVER RH | *8 | SEAT COVER WIRE |
| *9 | SEAT CUSHION COVER WITH PAD | *10 | SEAT TRACK HANDLE SUB-ASSEMBLY RH |
| *11 | SEPARATE TYPE FRONT SEAT CUSHION COVER | *12 | HOG RING |
| ● | Non-reusable part | - | - |
