AIRBAG CUT-OFF INDICATOR LIGHT COMPONENTS

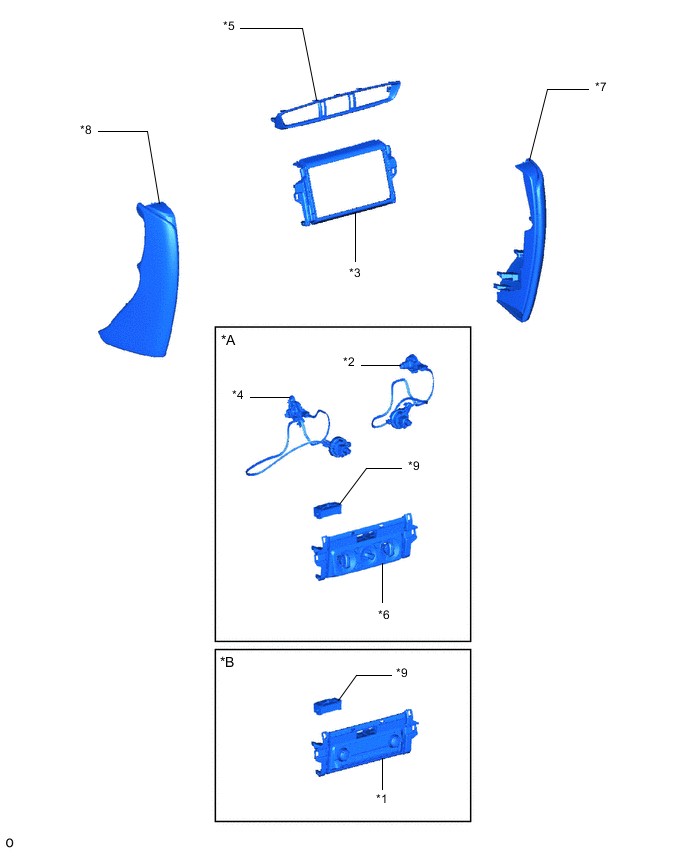

ILLUSTRATION
| *A | for Manual Air Conditioning System | *B | for Automatic Air Conditioning System |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY | *2 | AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY |
| *3 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY | *4 | DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY |
| *5 | INSTRUMENT PANEL REGISTER BEZEL GARNISH | *6 | INTEGRATION PANEL SUB-ASSEMBLY |
| *7 | NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY | *8 | NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY |
| *8 | TELLTALE LIGHT ASSEMBLY | - | - |
